GDS1500D diesel drive shotcrete mortar pump

diesel shotcrete pump for sale
  • diesel shotcrete pump for sale
  • GDS1500D diesel drive shotcrete mortar pump
  • spare part for shotcrete mortar pump
  • GDS1500D diesel drive shotcrete mortar pump
  • compare of Gaode shotcrete mortar pump
Model No.︰GDS1500D
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 6900 / set
Minimum Order︰1 set
Share on:

 Total 12 Related Items
Prev12345Next

Product Description

GDS1500D Shotcrete mortar Pump

shotcrete mortar pump Description

The GDS1500D is a diesel-powered lightweight shotcrete mortar pump run by a highly-reliable direct drive planetary gearbox and hydraulic power pack. This sturdy workhorse is made better with the added improvement of a direct drive to the carousel. The GDS1500D Direct Drive uses a 10hp diesel power pack, is skid mounted.

Shotcrete mortar Pump Features

1)    highly-reliable direct drive planetary gearbox

2)    infinite speed variation

3)    Easily operating on site work

4)   Standard spare part supply

Shotcrete Mortar Pump Technical Data Sheet

Item Description
Pressure 1.5 Mpa
Output 1.5-3m3/h
Max. Aggregate 12mm
The Squeeze Hose ID 50mm
Conveying Hose ID 38mm
Squeeze pump GH50-455
Power CFZ12 Diesel Engine, 10hp
Overall Dimension 2150x1100x1150mm
Hopper volume: 130 Liter
Weight 660kg
Requested air compressor 3m3/min, 0.5Mpa Pressure
Note: the Gasoline engine or Electric motor is optional

A Complete set of GDS1500D shotcrete mortar pump

No.

Description

Qty.

Unit

Remarks

1

GDS1500 main machine

1

set

  Chinese squeeze hose  or Trelleborg squeeze hose

2

conveying hose, L10m

2

pcs

one2’’, one 1.5’’

3

reducer 2'/1.5'

1

pcs



4

1.5’’ shotcrete nozzle assy.

1

set



5

1.5’’nozzle tip

1

pcs



6

clamp

2

sets

one 2’’, one 1.5’’

7

clean ball

2

pcs

one 2’’ , one 1.5’'

8

accessories

1

Set



Payment Terms︰TT/LC

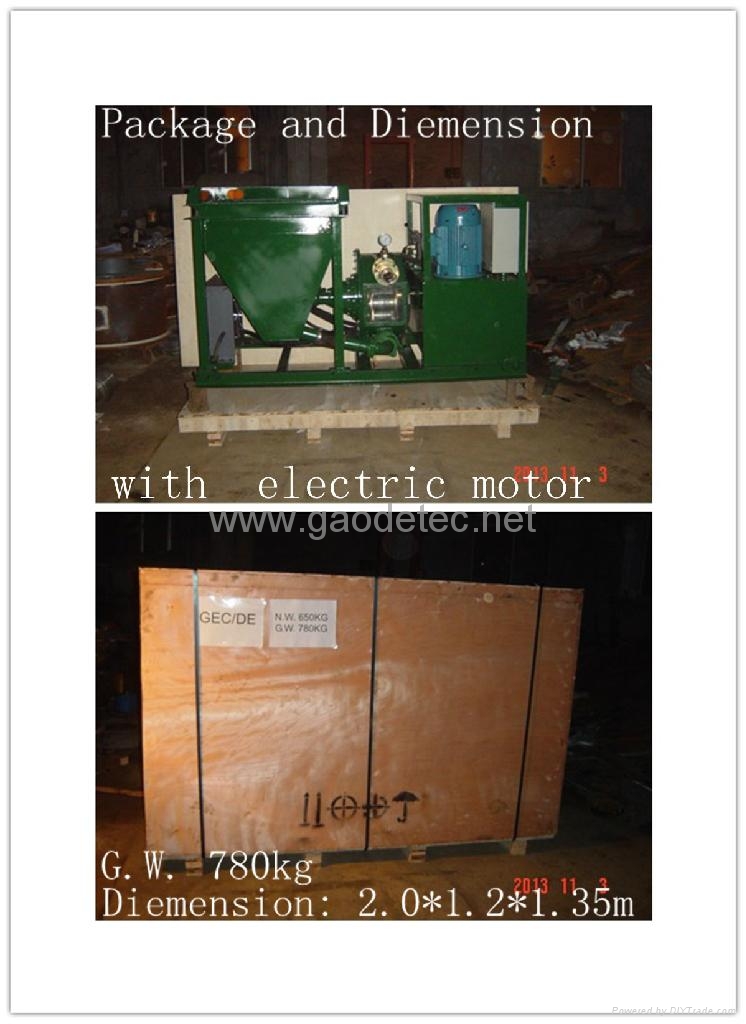

Packing︰plastic wrap, plywood case, free-fumigation, standard export packing. as shown below. Or customised.
Lead Time︰in stock. common type 7 working days after confirm
Standards Certificate︰CE ISO
Product Image

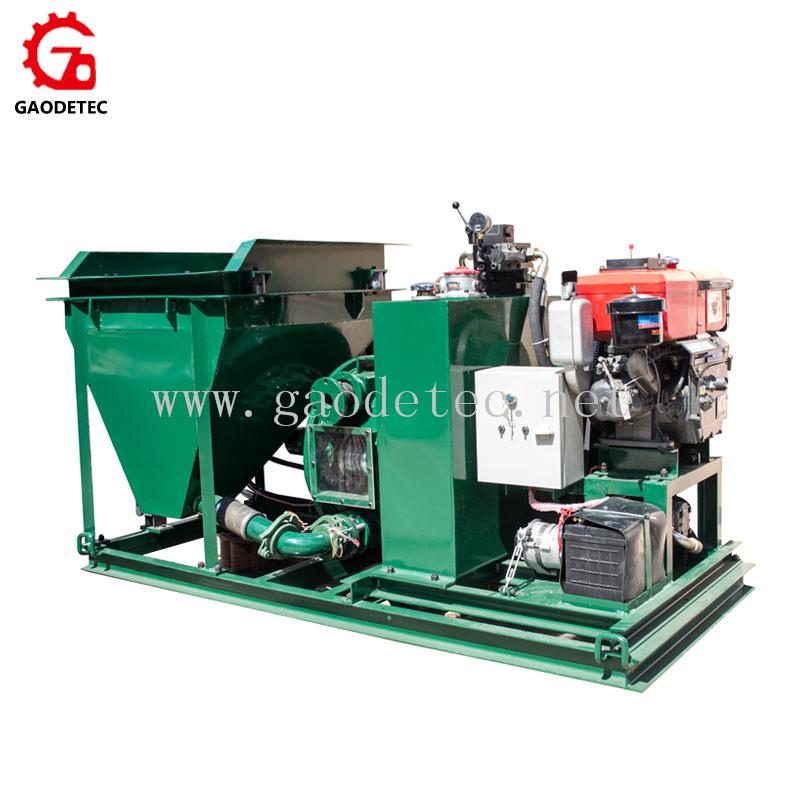

diesel shotcrete pump for sale

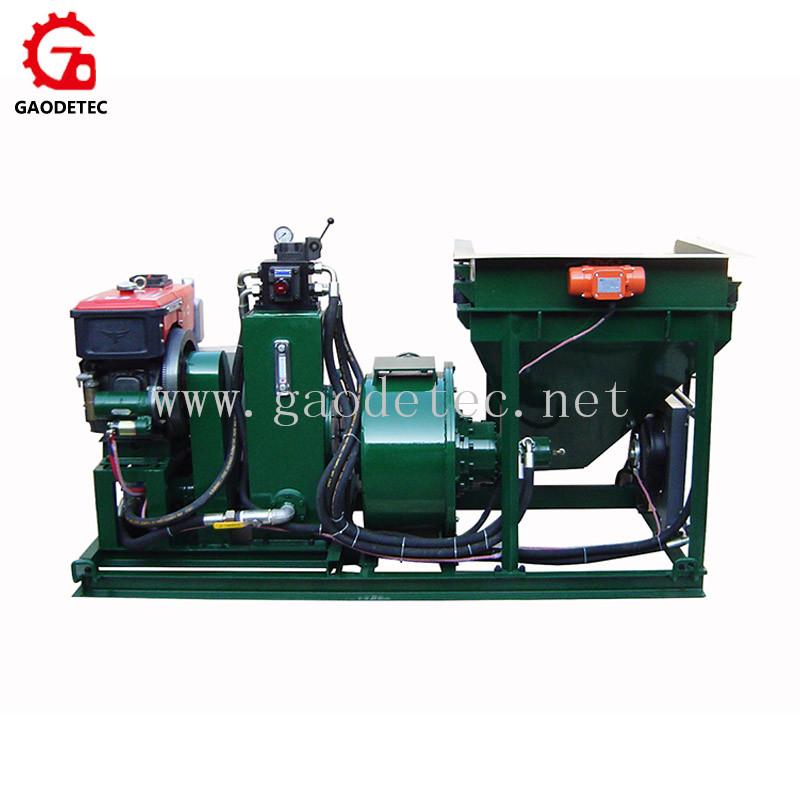

diesel shotcrete pump for sale

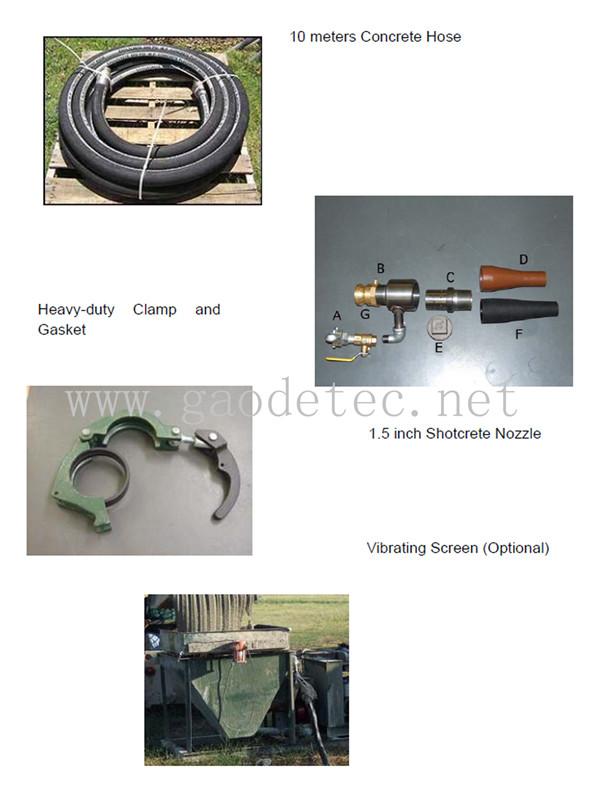

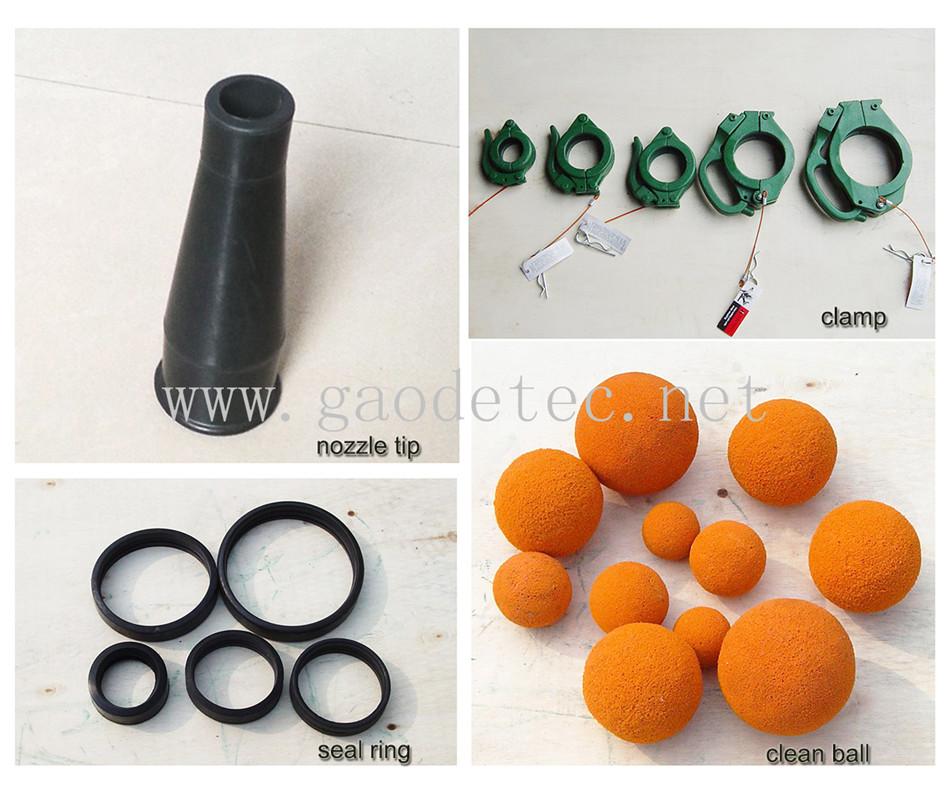

spare part for shotcrete mortar pump
spare part for shotcrete mortar pump


compare of Gaode shotcrete mortar pump
compare of Gaode shotcrete mortar pump
