GGP250/350/100PI-D Diesel Hydraulic Grout Plant
Diesel Grout Plant Description:

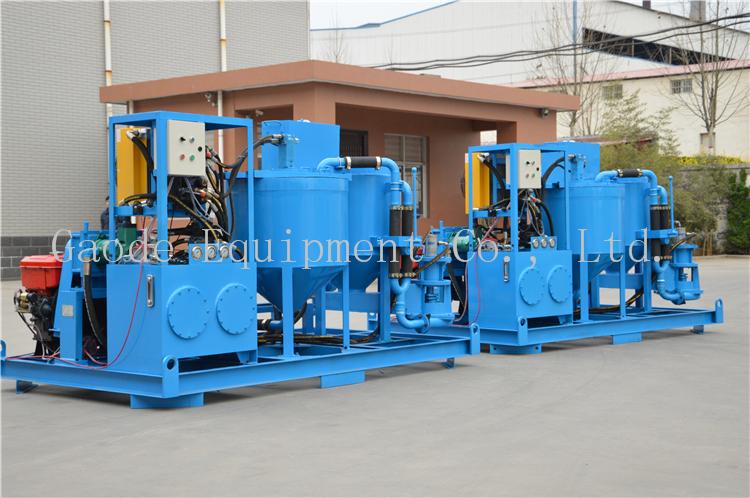

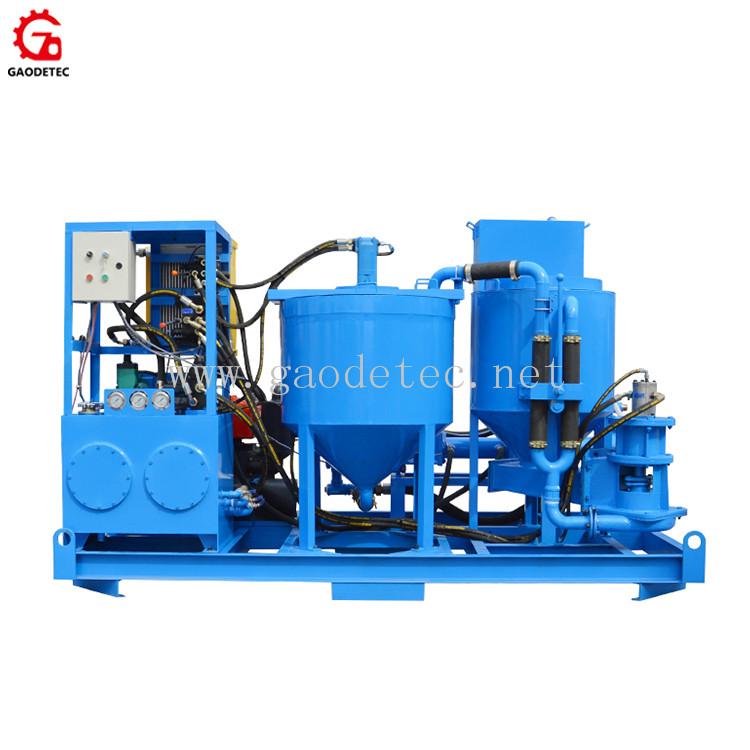

GGP250/350/100 PI-D Grout Plant is a hydraulic diesel driven combination of mixer, agitator and grout pump, it is specially design for continuous cement mixing and grouting in ground/underground engineering. It can fast mix water, cement and additive, then the mixed slurry can be stored into a 350 liters agitator, thus the mixing work can continuously be done.
Diesel Grout Plant Feature:
1. Compact size, It is combination of mixer, agitator and piston grout pump in one base frame;
2. Yuken relief valve and directional valve for hydraulic system of grout pump;
3. Butterfly valve of mixer and agitator;
4. Oil temperature gauge can automatically control cooler fan working in normal temperature range, if temperature is too high, the machine will stop work automatically;
5. Operation and maintenance are simple;
6. With ISO, CE certificate.
Diesel Grout Plant Technical data:
|
Description
|
Data
|
|
Grout Station type
|
GGP250/350/100 PI-D
|
|
Mixer Volume
|
250L
|
|
Mixer production(w/c ratio=1)
|
4 m3/h
|
|
Circulation capacity
|
1200l/min
|
|
Suitable W/C Ratio
|
0.5 to 1
|
|
Agitator Volume
|
350L
|
|
Agitator Speed
|
36rpm
|
|
Water tank
|
60L
|
|
Grout Pump Type
|
GDH90
|
|
Grout pump output(Max.)
|
100L
|
|
Grout pump work pressure
|
10MPa
|
|
Grout Station Overall dimension
|
3300x1650x1500mm
|
|
Grout Station Weight
|
1400kgs
|
|
Note:GGP250/350/100 PI-D is a combination of mixer, agitator and grout pump in one base frame
|
