GGP200/300/100 PI-E Grout Equipment for Sale

grout equipment
  • grout equipment
  • grout equipment
  • sell grout equipment
  • sell grout equipment
  • grout equipment OEM
  • grout equipment OEM
  • grout equipment OEM
  • grout equipment OEM
  • grout equipment OEM
  • grout equipment OEM
  • grout equipment OEM
  • grout equipment OEM
  • grout equipment OEM
  • sell grout equipment
Model No.︰GGP200/300/100
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 13900 / set
Minimum Order︰1 set
Share on:

 Total 73 Related Items
Prev5455565758Next

Product Description

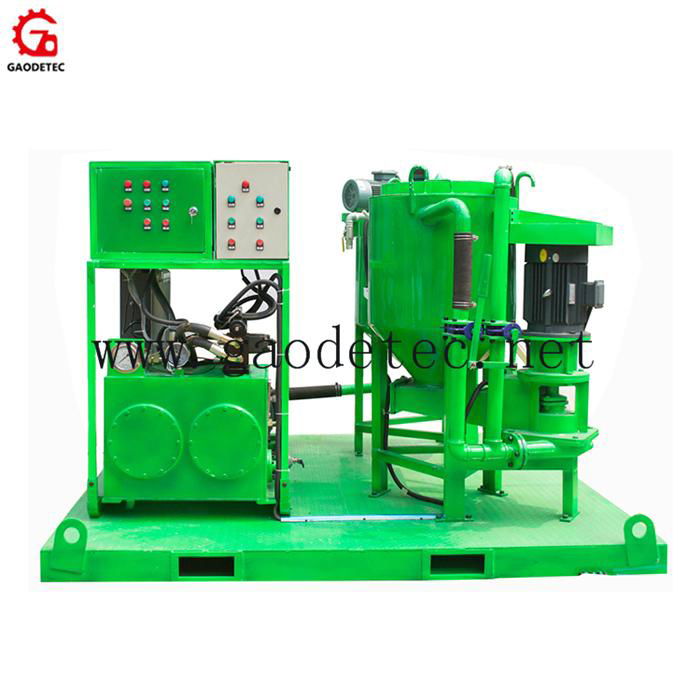

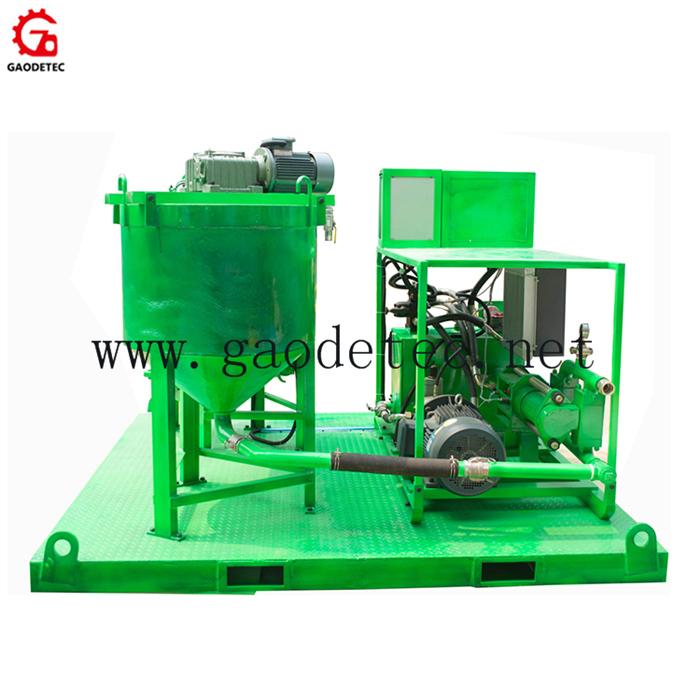

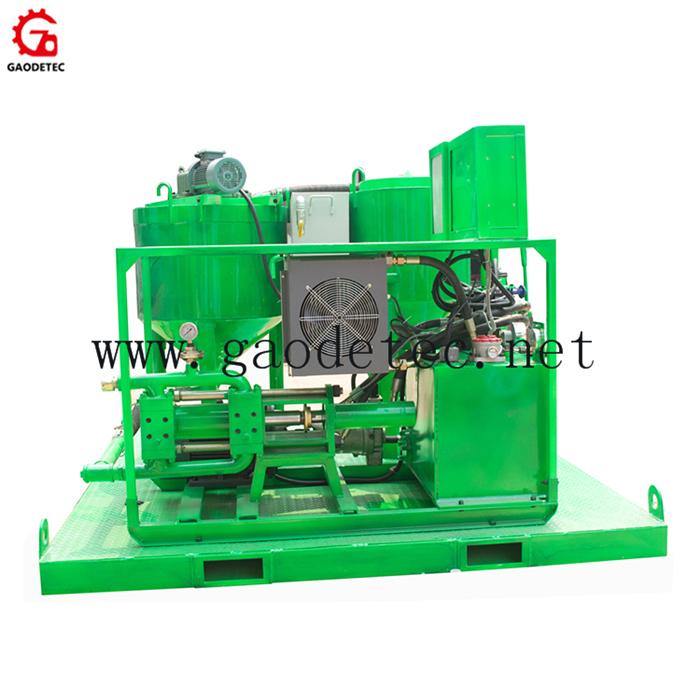

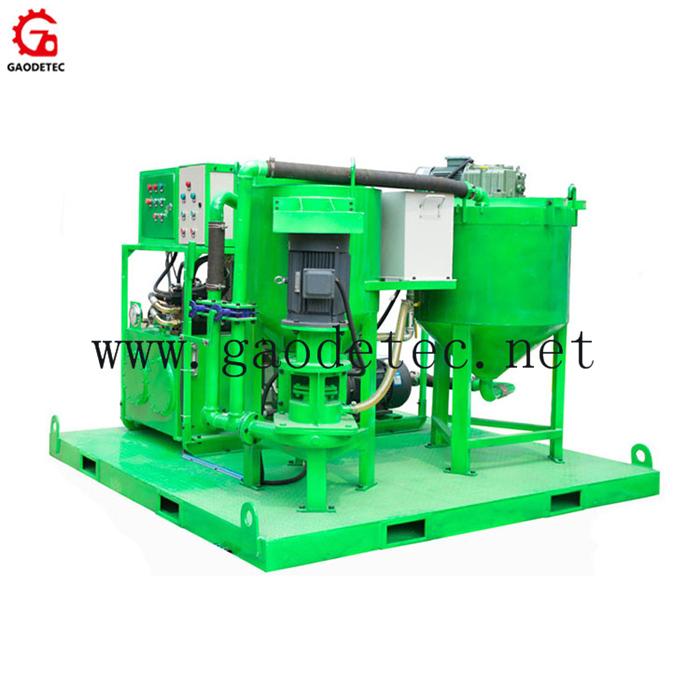

GGP200/300/100 PI-E Grout Equipment for Sale

Grout Equipment Feature:

1.    Grout equipment is combination of mixer, agitator and hydraulic grout pump in one base frame.

2.      Siemens electric motor(WEG electric motor is optional)

3.      Schneider component for electric control box.

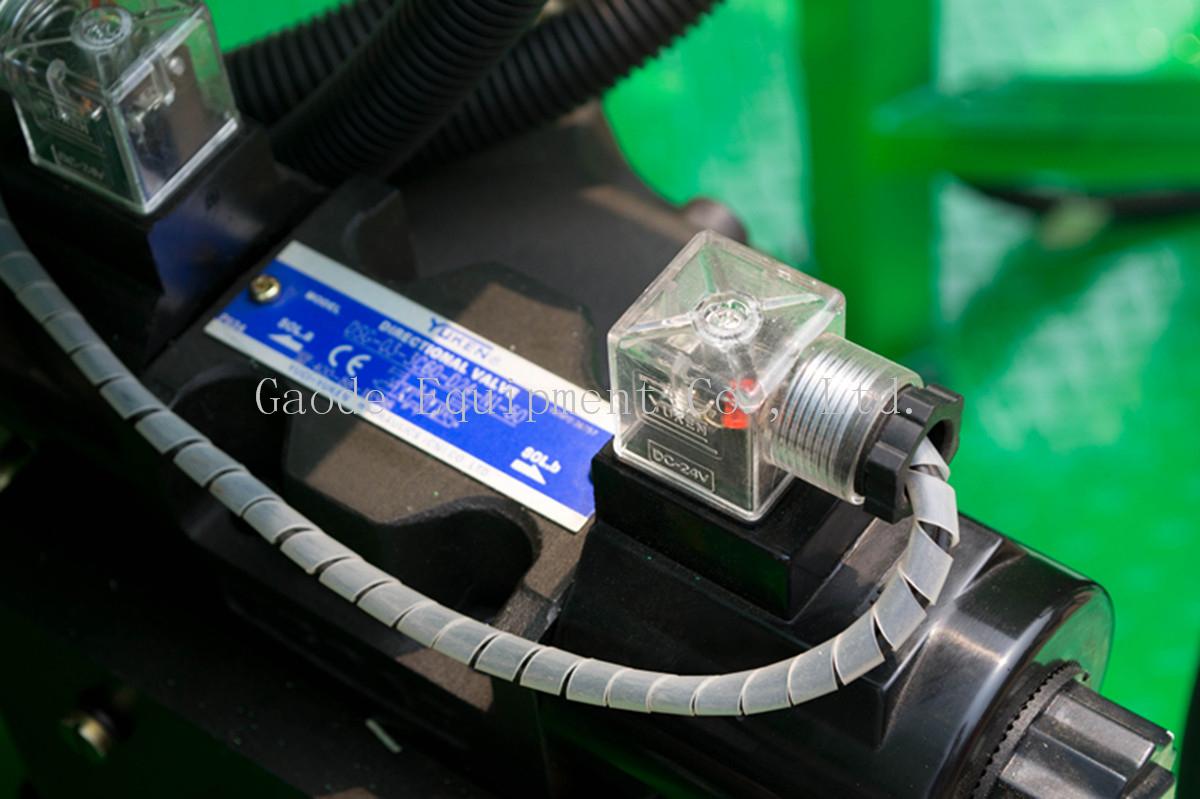

4.      Yuken reversing valve for hydraulic system of grout pump

5.      Butterfly valve of mixer and agitator.

6.      Linked switch between mixer and agitator.

7.      Oil temperature gauge can automatically control cooler fan working in normal temperature range, if temperature is too high, the machine will stop work automatically.

Grout Equipment Technical data:

Description

Data

Grout Station type

GGP200/300/100PI-E

Mixer Volume

200L

Mixer production(w/c ratio=1)

4 m3/h

Circulation capacity

1100l/min

Suitable W/C Ratio

0.5 to 1

Mixer electric motor power

7.5kw, 1450rpm

Agitator Volume

300L

Agitator Speed

36rpm

Agitator electric motor power

1.5kw, 1450rpm

Water tank

60L

Grout Pump Type

GDH90

Grout pump output(Max.)

100L/min

Grout pump work pressure

10MPa

Grout pump electric motor power

11kw, 1450rpm

Grout Equipment Overall dimension

2400x2300x1620mm

Grout Station Weight

1320kgs

 Contact Supplier:

Many thanks for visiting our web, we can supply grout station for you. Before we send quotation, please let me know the following question:

1. How about the flow and pressure of the pump you want, please?

2. How about the water and cement ratio, does any sand in?

3. About the power: electric (voltage and frequency) or diesel?

Please tell us your requirements and we will provide you with the corresponding product parameters and quotations. We have many standard models for your option, and we also could customize as per your requirement. If you have any questions, please contact us.

Payment Terms︰TT/LC
Packing︰plastic wrap, plywood case, free-fumigation, standard export packing. as shown below. Or customized.
Lead Time︰in stock. common type 7 working days once confirm
Standards Certificate︰CE ISO
