Popular good price grout equipment to Indonesia

grout pump machine
  • grout pump machine
  • grout pump machine
  • grout pump machine
  • grout pump machine
  • grout pump machine
  • grout pump machine
  • grout pump machine
  • grout pump machine
  • grout pump machine
  • grout pump machine
Model No.︰GGP300/350/85
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 9500 / set
Minimum Order︰1 set
Share on:

 Total 73 Related Items
Prev4748495051Next

Product Description

Popular good price grout equipment to Indonesia

Grout Equipment Description:

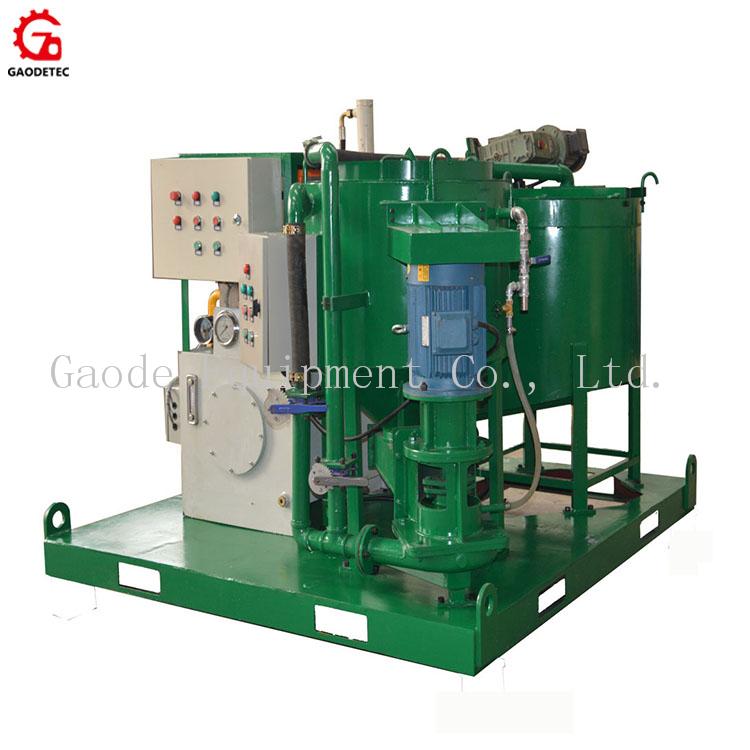

The GGP300/350/85 PL-Egrout equipment is combination of mixer, agitator and hydraulic plunger grout pump in one plant. Mainly suitable for mixing and pumping water, cement, sand, bentonite, filler, clay power, silicates and other additives.

Grout equipment Feature:

1. Compact size, It is combination of mixer, agitator and hydraulic plunger grout pump in one base frame;

2.Have low pressure and high pressure, stepless speed regulation;

3.Yuken relief valve and directional valve for hydraulic system of grout pump;

4.Butterfly valve of mixer and agitator;

5. Oil temperature gauge can automatically control cooler fan working in normal temperature range, if temperature is too high, the machine will stop work automatically;

6. Operation and maintenance are simple;

7. With CE, ISO certification

Grout equipment Technical data:

Type

GGP300/350/85 PL-E Grout equipment

Voltage

3 phase, 380V, 50HZ

Dimensions

2100x2030x1700mm

Weight

1250kg

                                               Mixer

Capacity

300L

Power

9kw

Rated Rev.



                                                Agitator

Volume

350L

Power

1.5kw

Rated Rev.



                                                  Pump

Type

Hydraulic Plunger pump

Pressure and Output

24 Bar (low pressure)   85L/min

50 Bar (high pressure)  55L/min

 Contact Supplier:

Many thanks for visiting our web, we can supply grout station for you. Before we send quotation, please let me know the following question:

1. How about the flow and pressure of the pump you want, please?

2. How about the water and cement ratio, does any sand in?

3. About the power: electric (voltage and frequency) or diesel?

Please tell us your requirements and we will provide you with the corresponding product parameters and quotations. We have many standard models for your option, and we also could customize as per your requirement. If you have any questions, please contact us.

Payment Terms︰TT/LC
Packing︰plastic wrap, plywood case, free-fumigation, standard export packing. as shown below. Or customized
Lead Time︰in stock. common type 7 working days once confirm
Standards Certificate︰CE ISO

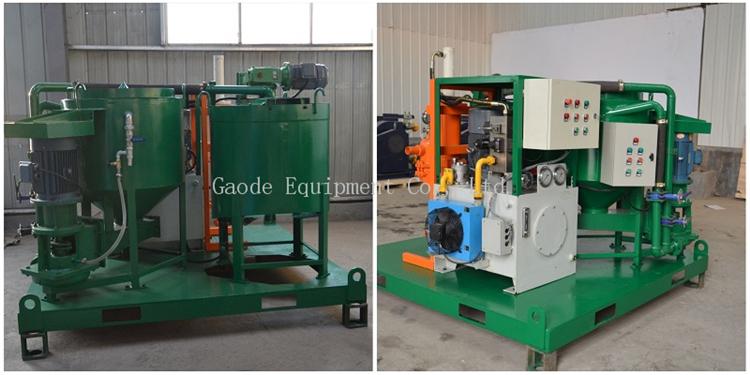

Product Image

grout pump machine
grout pump machine

grout pump machine
grout pump machine

grout pump machine
grout pump machine

grout pump machine
grout pump machine

grout pump machine
grout pump machine

grout pump machine
grout pump machine

grout pump machine
grout pump machine

grout pump machine
grout pump machine

grout pump machine
grout pump machine

grout pump machine
grout pump machine
