GZ-5ER Refractory Dry-mix shotcrete machine

shotcrete machine
  • shotcrete machine
  • gunite machine
  • refractory shotcrete
  • refractory shotcrete
  • refractory shotcrete
  • shotcrete machine
  • gunite machine
  • refractory shotcrete
Model No.︰GZ-5ER
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 7500 / pc
Minimum Order︰1 pc
Share on:

 Total 14 Related Items
Prev678910Next

Product Description

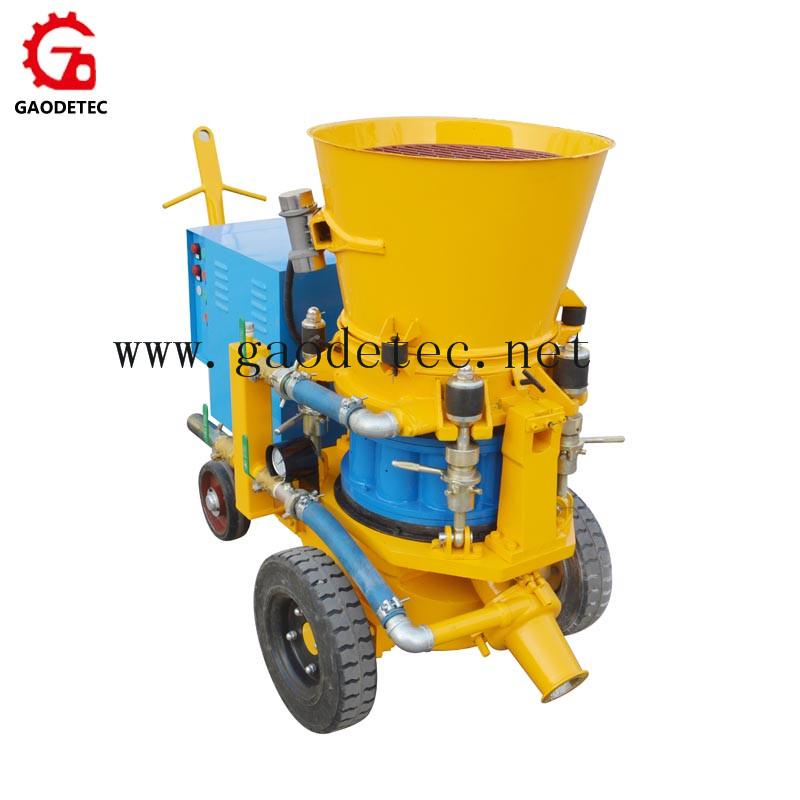

GZ-5ER Refractory Dry-mix shotcrete machine

Please copy the link to the product website for more products and information

Our website: www.gaodetec.net

Description:

GZ-5ER is specifically designed for Refractory Dry-mix shotcrete applications, as well as for concrete shotcrete application.

With this GZ-5ER, you can get low dust and high performance spraying flow in nozzle.

GZ-5ER is straight chamber rotor type refractory gunning machine.

Technology Sheet:

Specification (with Electric motor drive):

Rated output

2-5m3 /h(2-10 ton/h)

Max. Horizontal conveying distance

100m

Max. Aggregate size

Φ15 mm

Conveying hose inner diameter

51mm

Operating air pressure

0.2-0.4MPa(29-58PSI)

Air consumption

8~9m3/min(285-325CFM)

Motor power

5.5kW

Voltage

3 phase,380V,50Hz

Material charging height

1.1m

Rotor speed

0~13.2r/min

Overall dimension(L×W×H)

1.35×0.75×1.2m

Weight

720kg

Product Feature:

1. Variable output with variable-frequency drive

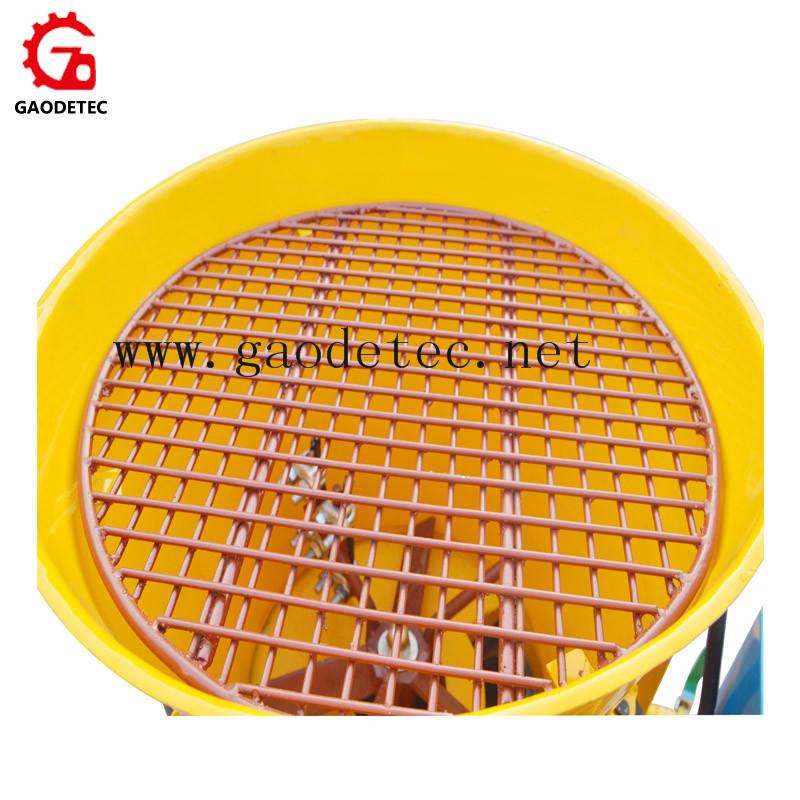

2. High hopper with vibrator

3. Collecting  dust bag

4. Cleaning dust gun

5. Electric vibrator

6. Protect frame

7. Heavy-duty solid wheels

8. Coupling and clamp

9. Light weight pre-dampening  nozzle

10.Blast rubber hose

11.High pressure water pump

Contact Supplier:

Many thanks for visiting our web, we can supply refractory shotcrete machine for you. Before we send quotation, please let me know the following question:


1. What's the project you will use the machine do ?
2. What is the output do you need, 3m3/h, 5m3/h ?
3. Drive type mode? Do you want electric or air motor ?
4. Do you have any other special requirments for this machine ?


We can customize according to your requirements, just tell us the application of the product or the parameter information you need.



Payment Terms︰TT/LC/DP/DA
Packing︰standard export packing or as your request
Lead Time︰10
Standards Certificate︰CE,ISO
