Small Concrete shortcrete Pump price made in China

concrete pump
  • concrete pump
  • small concrete pump
  • small concrete pump
  • small concrete pump
  • small concrete pump
  • concrete pump
  • concrete pump
  • concrete pump
  • small concrete pump
Model No.︰GCP8/80-30D
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 19000 / pc
Minimum Order︰1 pc
Share on:

 Total 12 Related Items
Prev56789Next

Product Description

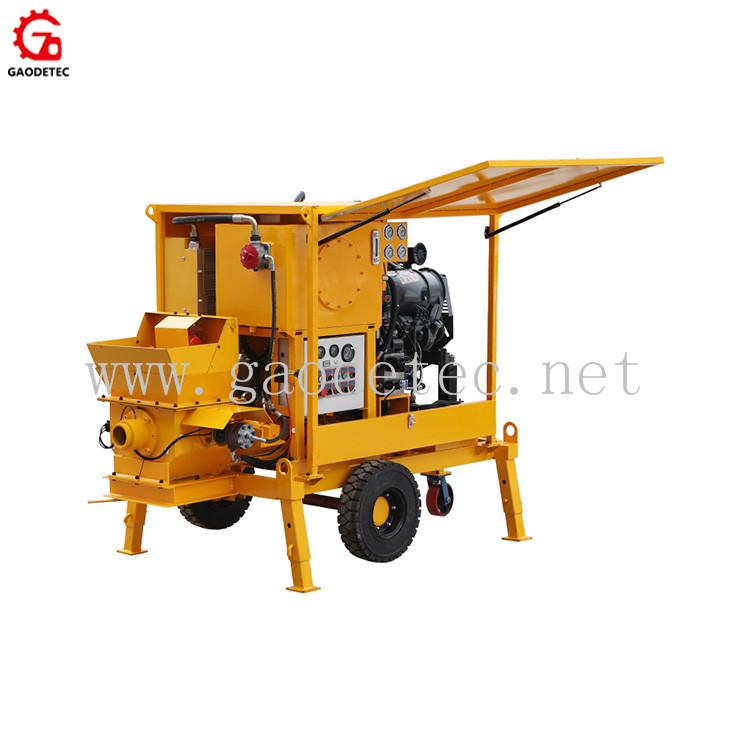

GCP8/80-30D Concrete Pump is a multi-purpose heavy-duty Swing-Valve concrete pump with air cooling diesel engine, hopper mixer, hopper vibrator, automatic lubrication and LS variable output. Concrete convey, Swing valve and hopper mixer are respectively driven by three hydraulic pump, among them, the concrete convey hydraulic pump is LS piston high pressure pump.

Technical data sheet:

Model

GCP8/80-30D

Rated Output

3-8m3 /h (LS)

Pump work pressure

38 Bar

Acceptable Max. Aggregate Size

20mm

Cylinder diameter

100mm

Cylinder Stroke

550mm

Pump Valve

S Valve

Max. Horizontal Conveying Distance

200m

Max. Vertical Conveying Distance

100m

Concrete Slump

7 -15cm

Conveying Hose Inner Diameter

100/80/50mm

Diesel engine

30kw@1800rpm 4-cylinder, air cooling

Dimension(L × W × H)

3000*1600*1900mm

Net Weight

1650kg

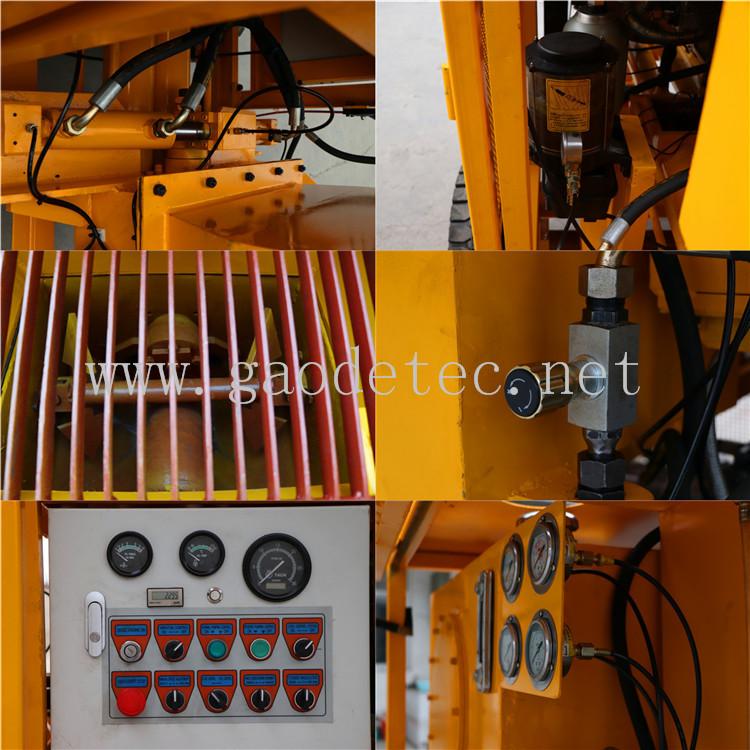

Feature:

1. Variable output(LS)

2. Automatic Lubrication

3. Vibrator in hopper

4. Mixer in receiving hopper

Applications:

  • Concrete wall construction
  • masonry block filling,
  • concrete wall grouting,
  • concrete sidewalk
  • Refractory castable&shotcrete
  • Concrete shotcrete
  • Tunneling construction;
  • Mining support (sprayed concrete walls and ceilings)
  • Swimming pool (sprayed concrete shells);
  • Excavation-protection;

Contact Supplier:

Many thanks for visiting our web, we can supply concrete pump for you. Before we send quotation, please let me know the following question:


1.What output do you want?
2.Do you want electric or diesel? If electric, what voltage it is on your local? It is 3 phase 380V 50Hz in China.
3.What’s your max aggregate size?
4.What project do you do?


We have many standard models for your option, and we also could customize as per your requirement, it can be used for grouting, shotcrete, its output can be adjusted. We also could add Setting accelerator pump for the concrete pump, etc.

Payment Terms︰TT/LC/DP/DA
Packing︰standard export packing or as your request
Lead Time︰15
Standards Certificate︰CE,ISO
Product Image

concrete pump
concrete pump

small concrete pump
small concrete pump

small concrete pump
small concrete pump

small concrete pump
small concrete pump

small concrete pump
small concrete pump

concrete pump
concrete pump

concrete pump
concrete pump

concrete pump
concrete pump

small concrete pump
small concrete pump
