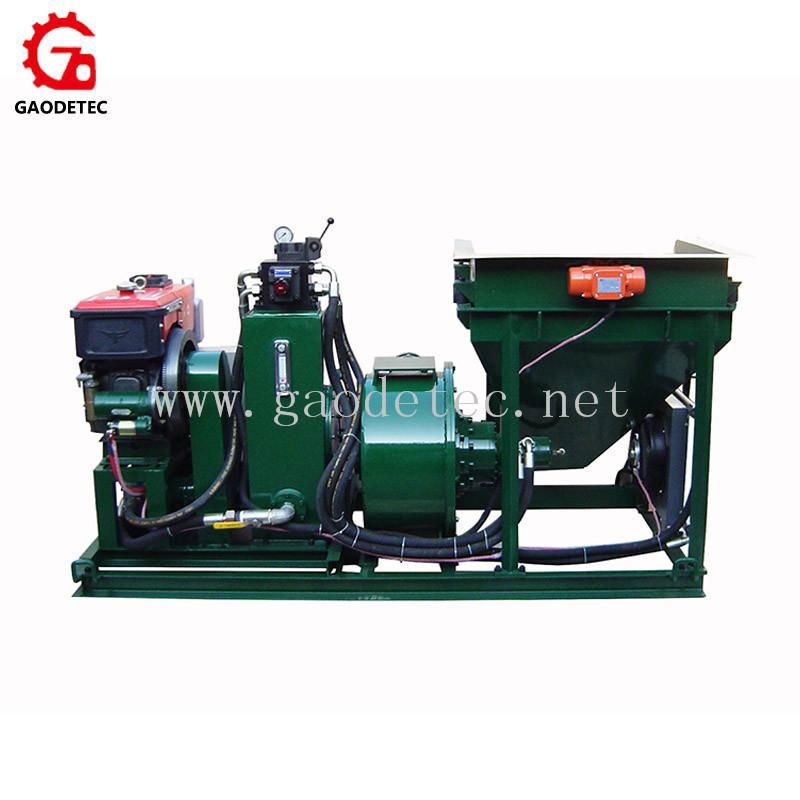

GDS1500D Portable Wet Shotcrete Machine
Portable Wet Shotcrete Machine Description
The GDS1500D is a diesel-powered wet shotcrete machine run by a highly-reliable direct drive planetary gearbox and hydraulic power pack. This sturdy workhorse is made better with the added improvement of a direct drive to the carousel. The GDS1500D Direct Drive uses a 10hp diesel power pack, is skid mounted.
Portable Wet Shotcrete Machine Feature
· highreliable direct drive planetary gearbox
· infinite speed variation
· Easily operating on site work
· Standard spare part supply
Portable Wet Shotcrete Machine Technical specification
|
Item
|
Description
|
|
Pressure
|
1.5 Mpa
|
|
Output
|
1.5-3m3/h
|
|
Max. Aggregate
|
8mm
|
|
The Squeeze Hose
|
ID 50mm
|
|
Conveying Hose
|
ID 38mm
|
|
Squeeze pump
|
LH50-455
|
|
Power
|
CFZ12 Diesel Engine, 10hp
|
|
Overall Dimension
|
2150x1100x1150mm
|
|
Hopper volume:
|
130 Liter
|
|
Weight
|
660kg
|
|
Requested air compressor
|
3m3/min, 0.5Mpa Pressure
|
Note: the Gasoline engine or Electric motor is optional
A Complete set of GDS1500D portable wet shotcrete machine
|
No.
|
Description
|
Qty.
|
Unit
|
Remarks
|
|
1
|
GDS1500 main machine
|
1
|
set
|
Chinese squeeze hose or Trelleborg squeeze hose
|
|
2
|
conveying hose, L10m
|
2
|
pcs
|
one2’’, one 1.5’’
|
|
3
|
reducer 2'/1.5'
|
1
|
pcs
|
|
|
4
|
1.5’’ shotcrete nozzle assy.
|
1
|
set
|
|
|
5
|
1.5’’nozzle tip
|
1
|
pcs
|
|
|
6
|
clamp
|
1
|
sets
|
two 2’’, two 1.5’’
|
|
7
|
clean ball
|
2
|
pcs
|
one 2’’ , one 1.5’'
|
|
8
|
accessories
|
1
|
Set
|
|
