JBT30 P2 electric concrete pump with mixer

china made concrete pump with mixer
  • china made concrete pump with mixer
  • concrete mixer with pump
  • electric drive concrete mixer pump
  • concrete mixer pump trailer for sale
  • price concrete mixer pump
  • trailer concrete mixer pump
  • portable concrete mixer pumps
  • concrete mixer pump in Algeria
  • Electric Concrete Mixer Pump
  • concrete pump and mixer
  • jbt30 concrete mixer pump
  • concrete mixer pump for sale
  • mobile trailer concrete mixer pump
Model No.︰JBT30 P2
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 23500 / set
Minimum Order︰1 set
Share on:

 Total 6 Related Items
Prev23456Next

Product Description

Portable concrete pump with mixer is combined by the traditional concrete pump and the mixer together. It achieves full automatic during concrete construction process.

Application of concrete pump with mixer

Convey floor heating lightweight foamed cement, mortar, fine aggregate concrete.
Convey greening soil in ecological environment construction.
Convey all kinds of engineering construction in the plain concrete, fiber concrete.
Most suitable for four to six floor buildings, especially in the group buildings, bridges and the small construction sites where need the concrete mixer at the scene.

 Features of concrete pump with mixer

1.  Double open hydraulic loops (pumping hydraulic circuit is independent of distributing hydraulic circuit) with two pumps, makes the whole hydraulic system much simpler. The reliability of the whole system is also much higher as well as the components’ life is prolonged greatly. This is convenient for judgeing and removing trouble.
2.  Large valve changing direction, makes the main pumping loop quick response, small leakage, good stability,high reliability and high resist contaminative capability.
3. Hydraulic system has safe relief protection,at the same time,when the system pressure is over, the main oil pump cutting device makes itself be protected reliably.
4.  Distributing hydraulic circuit adopts constant pressure pump, which can provide strong distributing pressure and economic energy control.
5. Cone sealing of all pipes make the pipe joints seal reliably.
6.  The high-low pressure switch adopting cartridge valve of reduces the trouble of dismantling and installing the oil pipe.
7. Adopt emulsification technology of initiative and passivity recovery integration.

Technical data of concrete pump with mixer

Items

Units

Parameters

JBT30-P2





Whole performance of machine




Max. concrete output

m3/h

30

Max. concrete pumping pressure

MPa

10

Distribution valve type



S Valve

Concrete cylinder diameter*stroke

mm

Ф140×1000

Hopper capacity

L

400

Outlet diameter

mm

Ф100





Power system




Hoist motor power

kw

5.5

Mixer the motor Power

kw

4.5

Water pump motor power

kw

0.55

Rated power

kw

37

Rotate speed

r/min

1480

Hydraulic system

Circuit type



Open circuit

Pumping system pressure

MPa

28

Mixing system pressure

MPa

6-8

Capacity of oil tank

L

370

Max. Vertical/Horizontal conveying distance

m

120/500

Other parameters

Max. aggregate diameter

mm

20

Inside diameter of delivering pipe

mm

Ф100-80

Dimensions:length*width*height

mm

4200*2300*3150

Total weight

kg

4500

Payment Terms︰TT / LC
Packing︰In a 20GP container delivery or as requested
Lead Time︰10 working days.
Standards Certificate︰ISO
Product Image

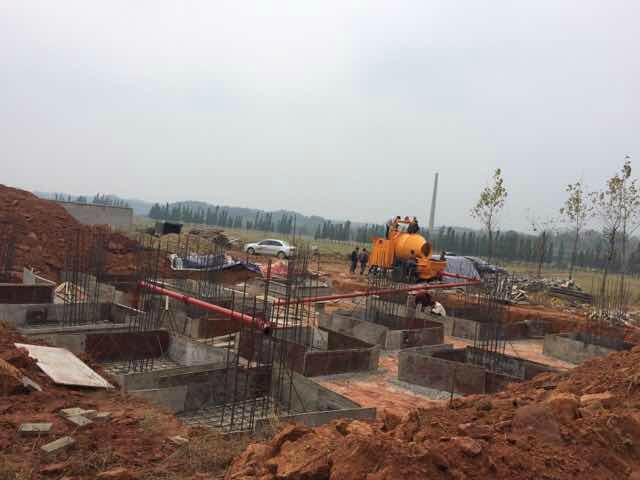

china made concrete pump with mixer
china made concrete pump with mixer

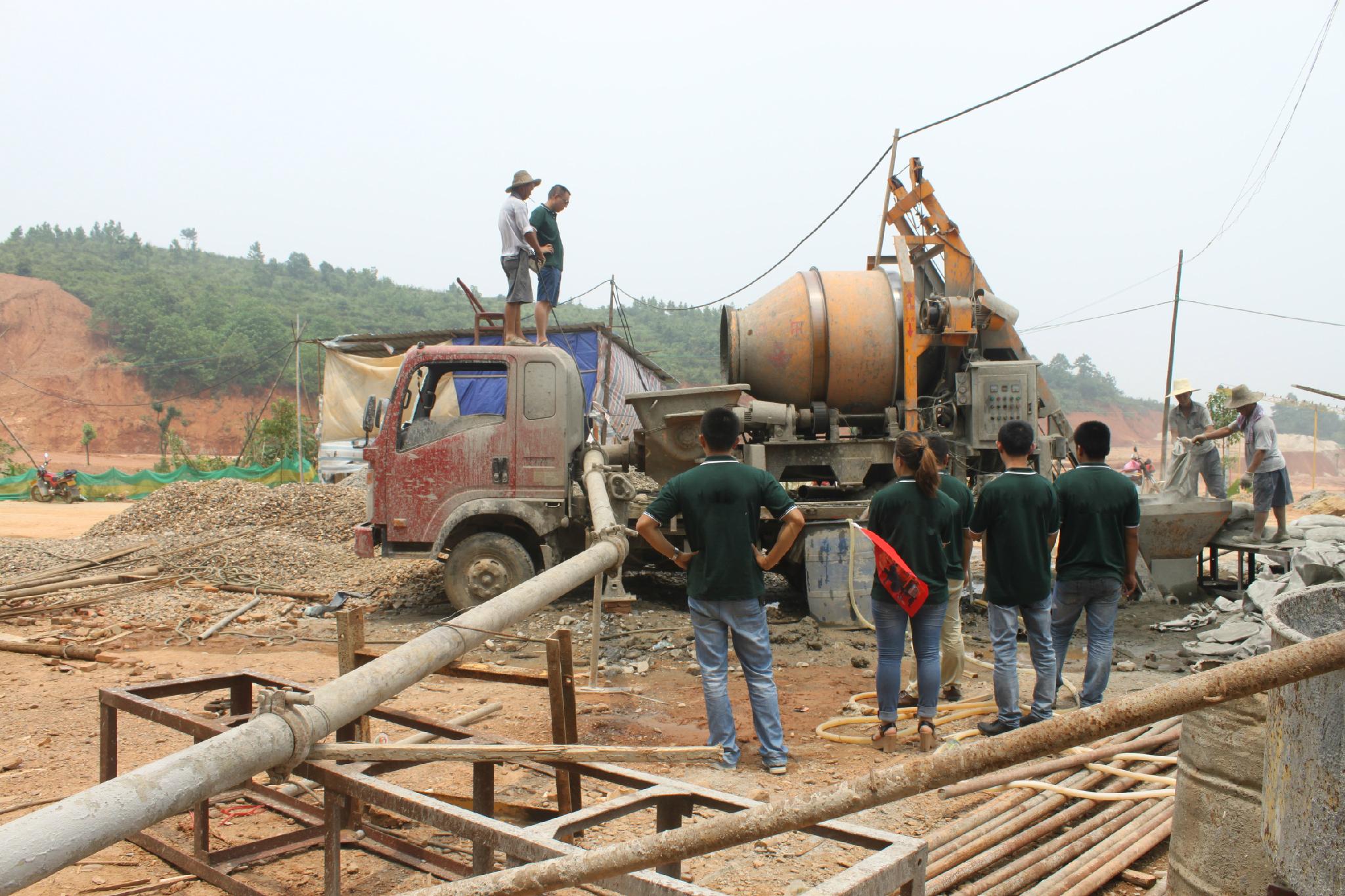

concrete mixer with pump
concrete mixer with pump

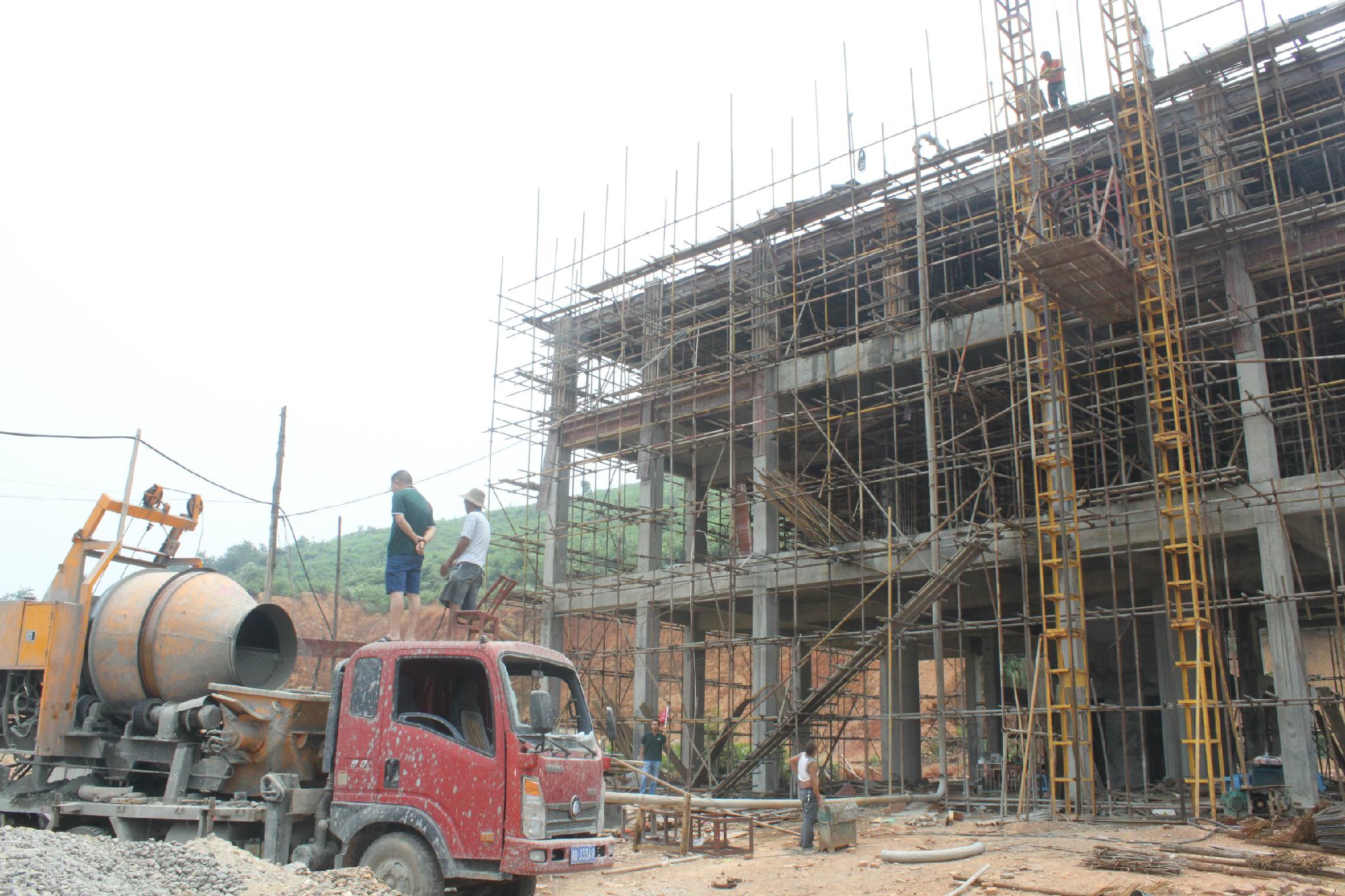

electric drive concrete mixer pump
electric drive concrete mixer pump

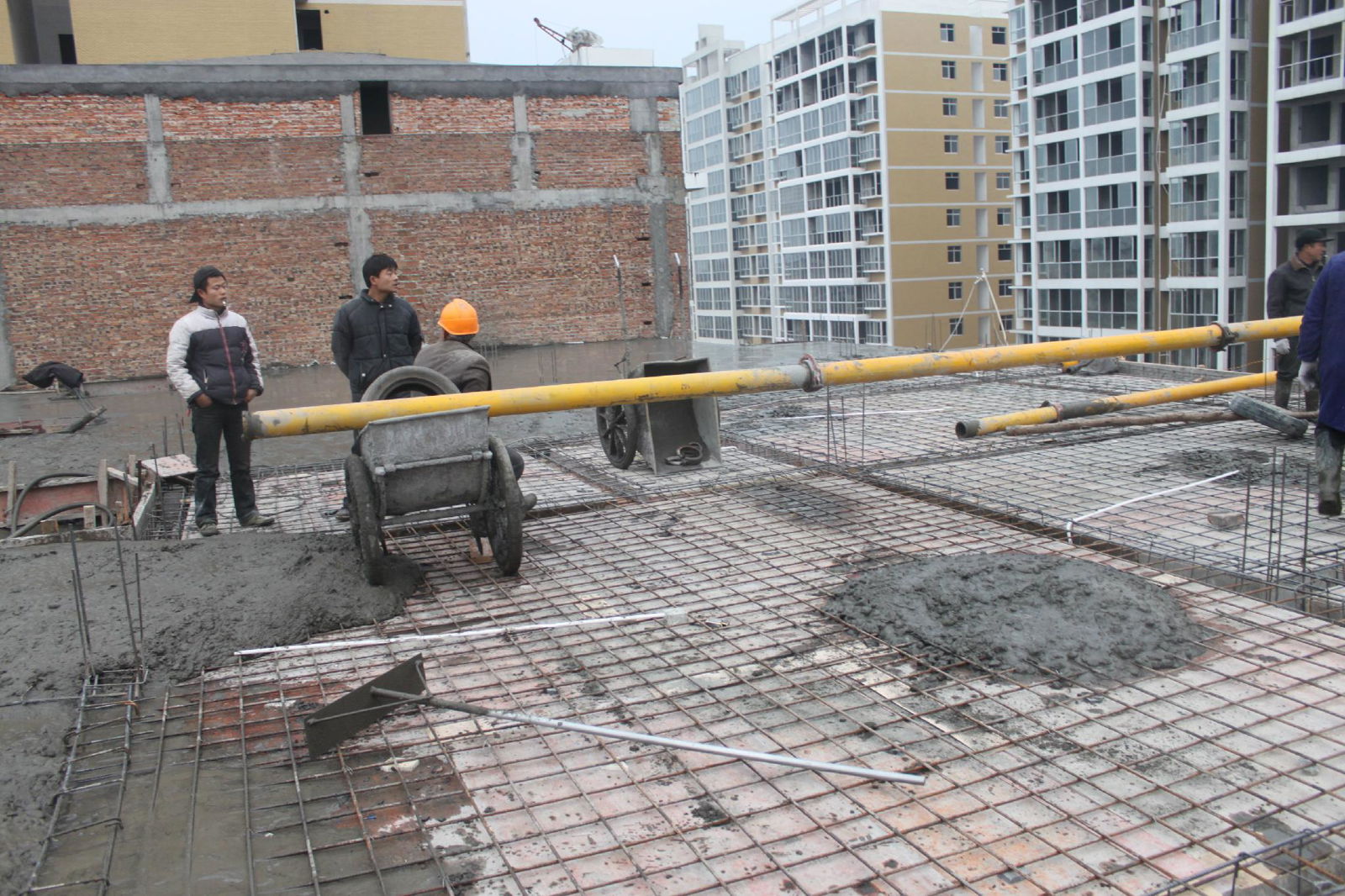

concrete mixer pump trailer for sale
concrete mixer pump trailer for sale

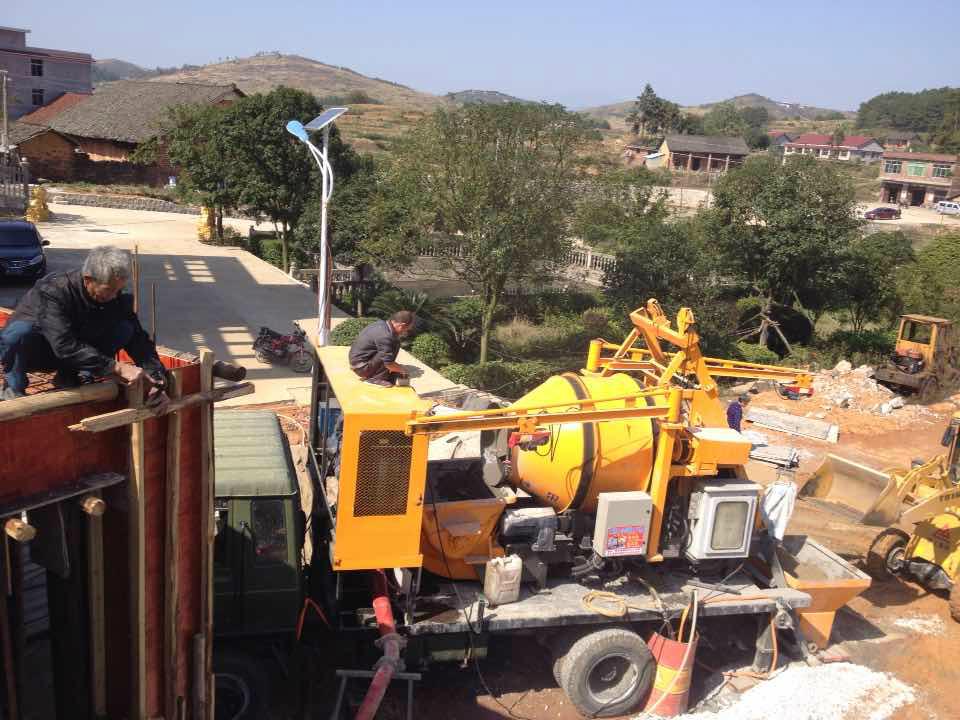

price concrete mixer pump
price concrete mixer pump

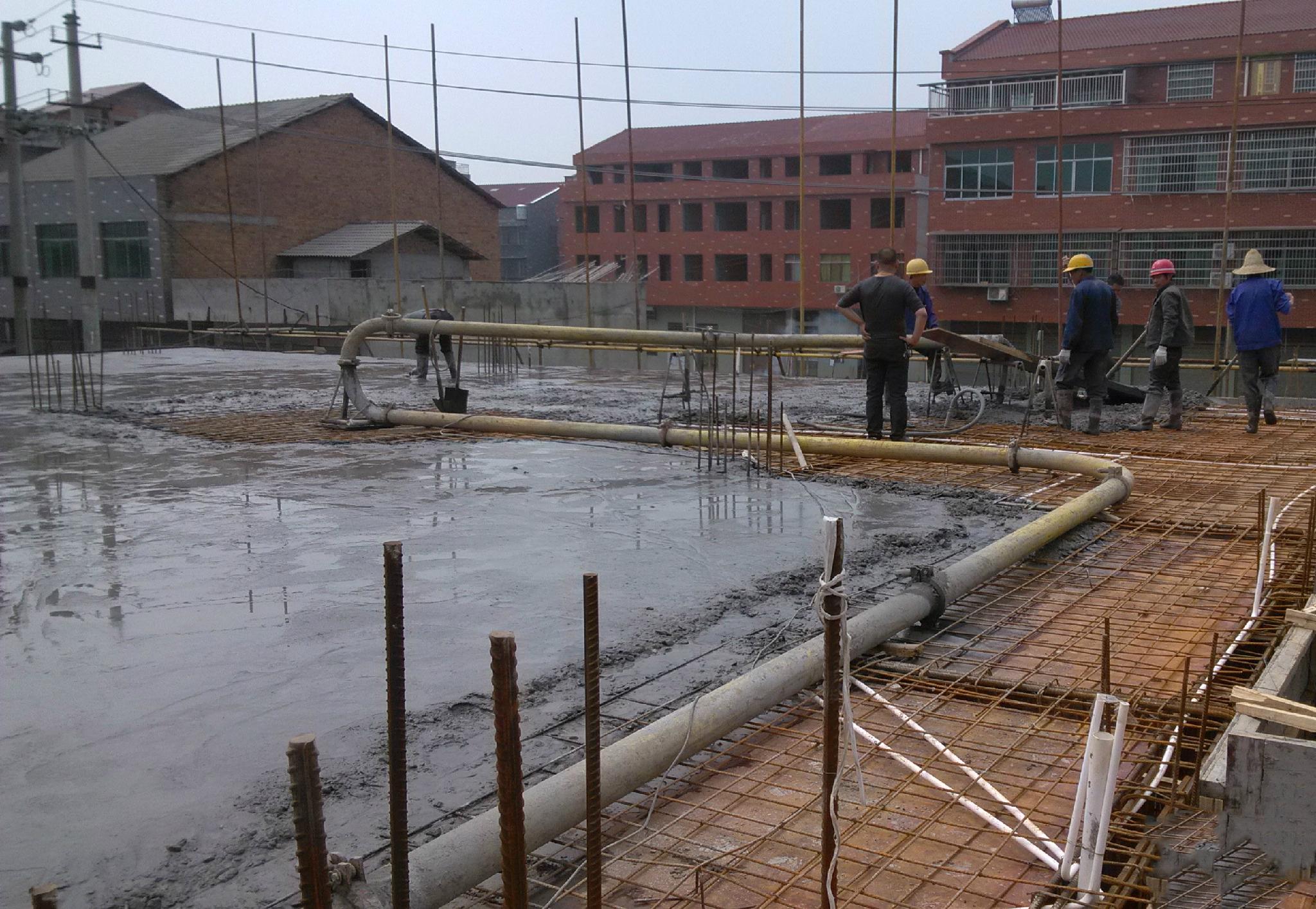

trailer concrete mixer pump
trailer concrete mixer pump

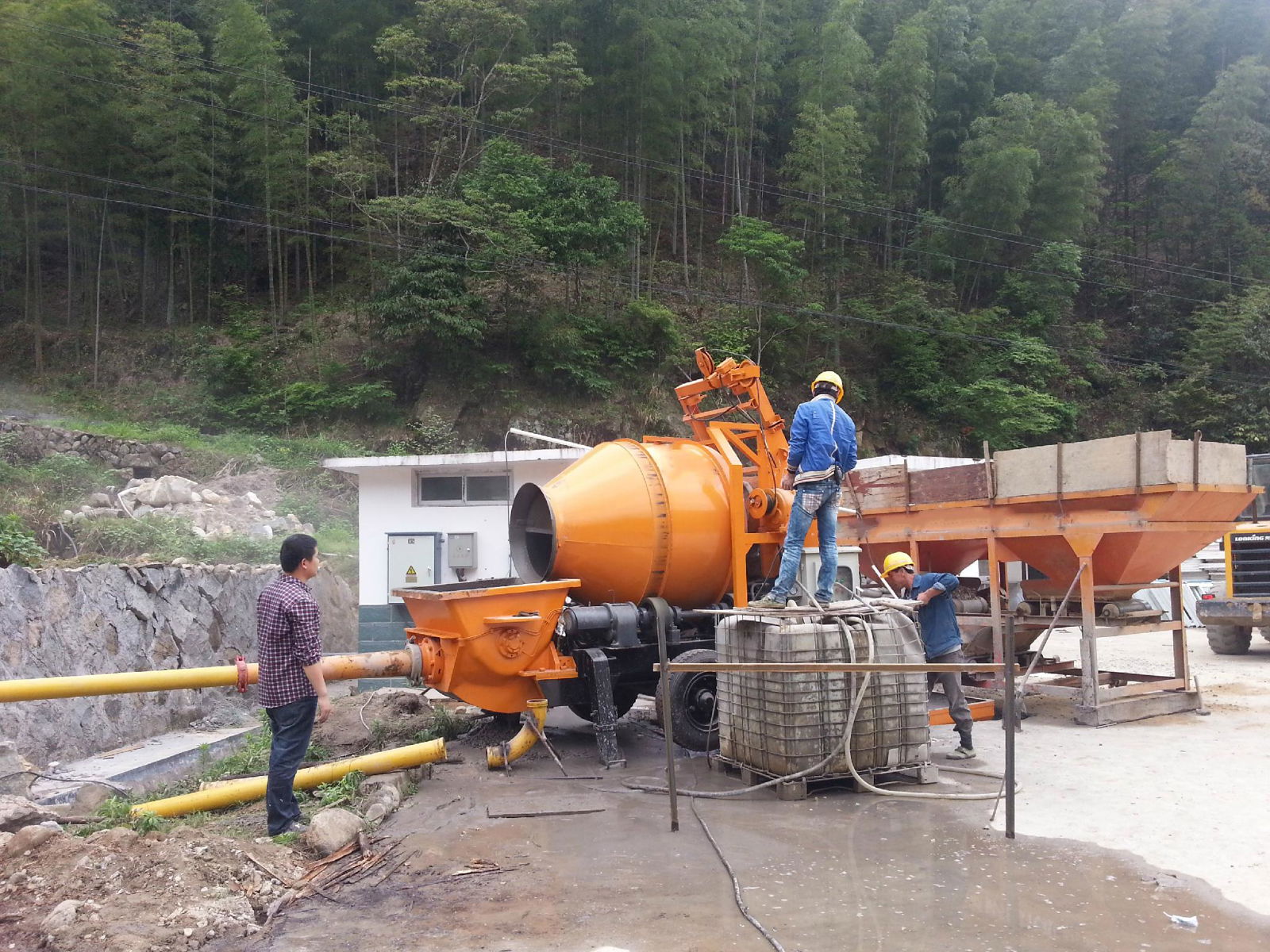

portable concrete mixer pumps
