GGP250/350/100 PI-D high quality high efficiency grout equipment factory price

grout mix pump plant
  • grout mix pump plant
  • grout mix pump plant
  • cement grout station
  • grout  equipment
  • grout  equipment
  • grout  equipment
  • grout  equipment
  • grout  equipment
  • grout  equipment
  • grout  equipment
  • grout  equipment
  • grout  equipment
  • grout  equipment
  • grout  equipment
  • cement grout station
  • cement grout station
  • cement grout station
Model No.︰GGP250/350/100
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 12000 / set
Minimum Order︰1 set
Share on:

 Total 73 Related Items
Prev1718192021Next

Product Description

 High quality high efficiency grout equipment with factory price

Grout Station Plant Description:

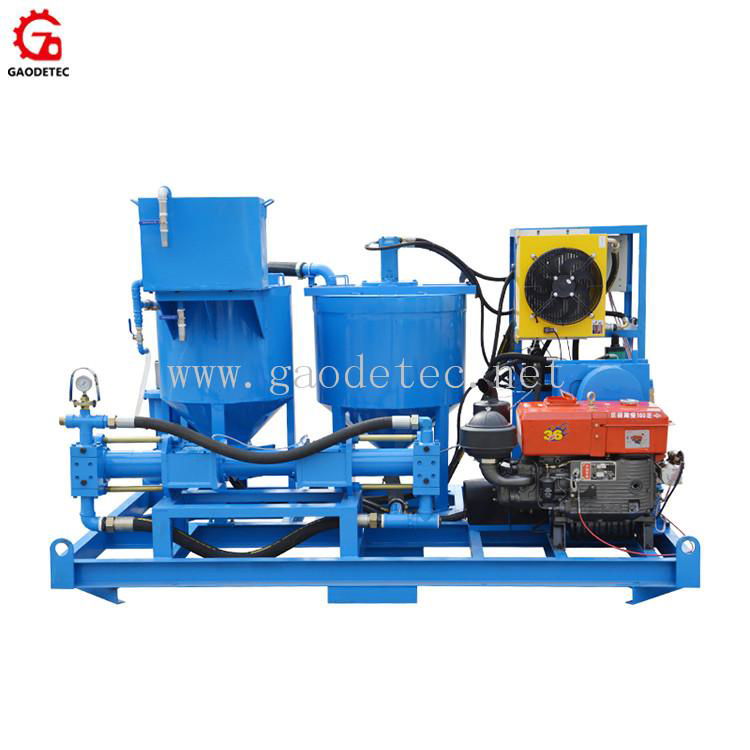

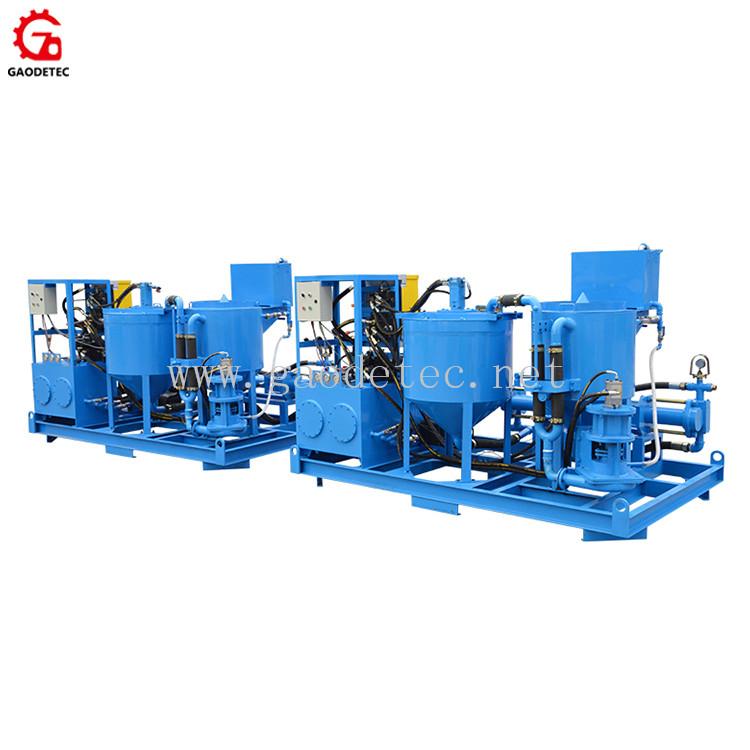

GGP250/350/100PI-D Grout equipment is a hydraulic driven combination of mixer, agitator and grout pump, it is specially design for continuous cement mixing and grouting in ground/underground engineering. It can fast mix water, cement and additive, then the mixed slurry can be stored into a 300 liters agitator, thus the mixing work can continuously be done.

Grout Equipment Feature:

1. Compact size, It is combination of mixer, agitator and piston grout pump in one base frame;

2. Yuken relief valve and directional valve for hydraulic system of grout pump;

3. Butterfly valve of mixer and agitator;

4. Oil temperature gauge can automatically control cooler fan working in normal temperature range, if temperature is too high, the machine will stop work automatically;

5. Operation and maintenance are simple;

6. With ISO, CE certificate.

Grout Equipment Technical data:

Description

Data

Grout Station type

GGP250/350/100 PI-D

Mixer Volume

250L

Mixer production(w/c ratio=1)

4 m3/h

Circulation capacity

1200l/min

Suitable W/C Ratio

0.5 to 1

Agitator Volume

350L

Agitator Speed

36rpm

Water tank

60L

Grout Pump Type

GDH90

Grout pump output(Max.)

100L

Grout pump work pressure

10MPa

Grout equipment Overall dimension

3300x1650x1500mm

Grout Station Weight

1400kgs

Note: GGP250/350/100PI-D is a combination of mixer, agitator and grout pump in one base frame







Payment Terms︰TT/LC
Packing︰plastic wrap, plywood case, free-gumigation, standard export packing. as shown below. Or customized.
Lead Time︰in stock. common type 7 working days once confirm
Standards Certificate︰CE ISO
Product Image

grout mix pump plant
grout mix pump plant

grout mix pump plant
grout mix pump plant

cement grout station
cement grout station

grout  equipment
grout equipment

grout  equipment
grout equipment

grout  equipment
grout equipment

grout  equipment
grout equipment

grout  equipment
grout equipment

grout  equipment
grout equipment

grout  equipment
grout equipment

grout  equipment
grout equipment

grout  equipment
grout equipment

grout  equipment
grout equipment

grout  equipment
grout equipment

cement grout station
cement grout station

cement grout station
cement grout station

cement grout station
cement grout station
