Jet grout mixer pump equipment cement grouting station for cavity

Jet grout mixer pump
  • Jet grout mixer pump
  • grouting station
  • cement grout
  • grouting station
  • cement grout
  • Jet grout mixer pump
  • Jet grout mixer pump
Model No.︰GGP1200/3000
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 16999 / pc
Minimum Order︰1 pc
Share on:

 Total 73 Related Items
Prev89101112Next

Product Description

Jet grout mixer pump equipment cement grouting station for cavity

GGP1200/3000/300H-E grout station is a combination of the mixer, agitator and grouting pump in one plant, mainly used to mix cement, bentonite slurry for grout and backfill grout Injection in ground/underground construction or TBM tunnel construction, such as highways, railways, water and electricity, construction, mining etc. This station is equipped the automatically batching weight system and PLC control system to automate operations.

High speed vortex mixer ensures mix quickly and evenly. Water, cement and other media are quickly mixed into a homogeneous slurry. Then the mixed slurry was delivered to the agitator. Grout pump injects from the mixing drum (storage tank). This ensures a continuous mixing and grouting operations. The grouting pump is hydraulic drive. Grouting pressure and displacement is stepless adjustable. Compact size and it is easy to operate. It also takes up a small space.

Please copy the link to the product website for more products and information

Our website: www.gaodetec.net

Name

Data

Type

GGP1200/3000/300H-E

Weighting

Sensor

S-type tension pressure sensor

Load

800kg

Output signal

Current signal

Vibration motor

24V, 4KN, 0.37kw

Mixer

Volume

1200L

Slurry pump power

11kw

Output

80m3/h

Agitator

Volume

3000L

Geared motor power

3kw

Speed

45rpm

Hose pump

Output

300L/min

Pressure

1.6MPa

Power

 18.5kw

Air compressor

2.2kw

Power supply

220V(380V,415V Multiple choices)

Dimension

4150×2100×2750mm

Weight

4000kg

We could also customize according to your demands



Feature:

1. Automatically batching and automatically mixing system.

2. High turbulence mixing.

3. PLC control system, operation mode can be operated automatically and manually.

4. Mixer, agitator, hose pump in one frame base, compact size.

5. Heavy duty industrial hose pump.



Application:

It is mainly used in highway, railway, hydropower, construction, mining and other ground and underground construction.

Ø Civil engineering - dam, tunnel, subway, mine, soil nailing wall, curtain, anchor, cable trench and anchor grouting

Ø Building structure - building and bridge repair, foundation reinforcement, slope support, soil compaction, terrg grouting

Ø Engineering - underwater foundation, offshore platform, coast foundation grouting reinforcement

Ø Mine application - roadway reinforcement, backfill, waterproof grouting

Ø Acted as a grouting plant in the Pipe Jacking Machine



Contact Supplier:

Many thanks for visiting our web, we can supply grout station for you. Before we send quotation, please let me know the following question:


1. How about the flow and pressure of the pump you want, please?
2. How about the water and cement ratio, does any sand in?
3. About the power: electric (voltage and frequency) or diesel?


Please tell us your requirements and we will provide you with the corresponding product parameters and quotations. If you have any questions, please contact us.

Payment Terms︰TT / LC / DP / DA
Packing︰Wooden packing
Lead Time︰7-15days
Standards Certificate︰ISO CE
Product Image

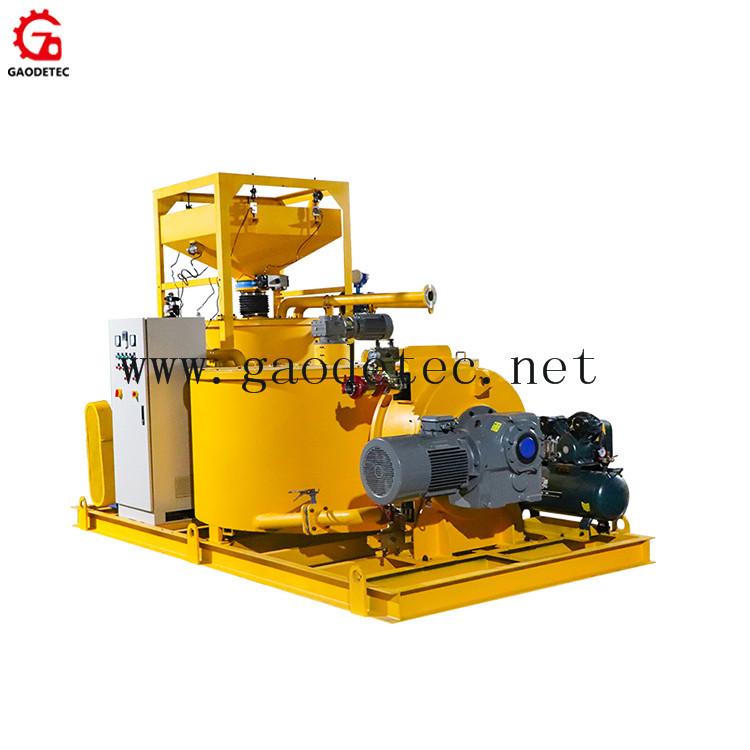

Jet grout mixer pump
Jet grout mixer pump

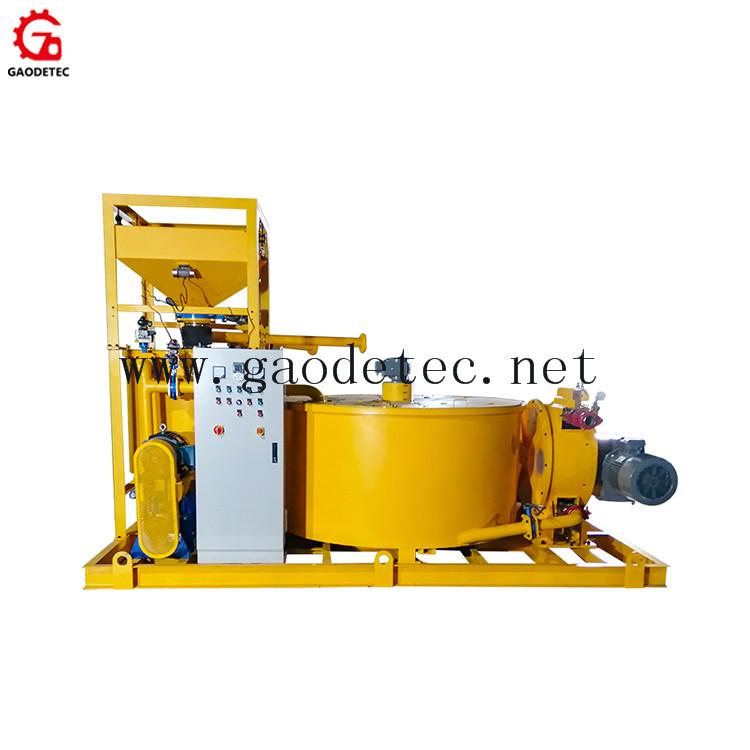

grouting station
grouting station

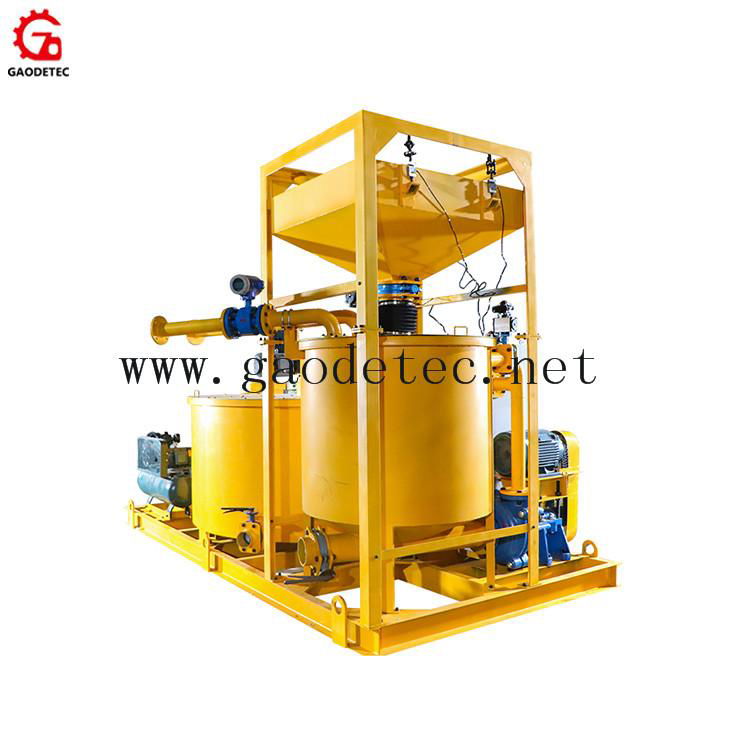

cement grout
