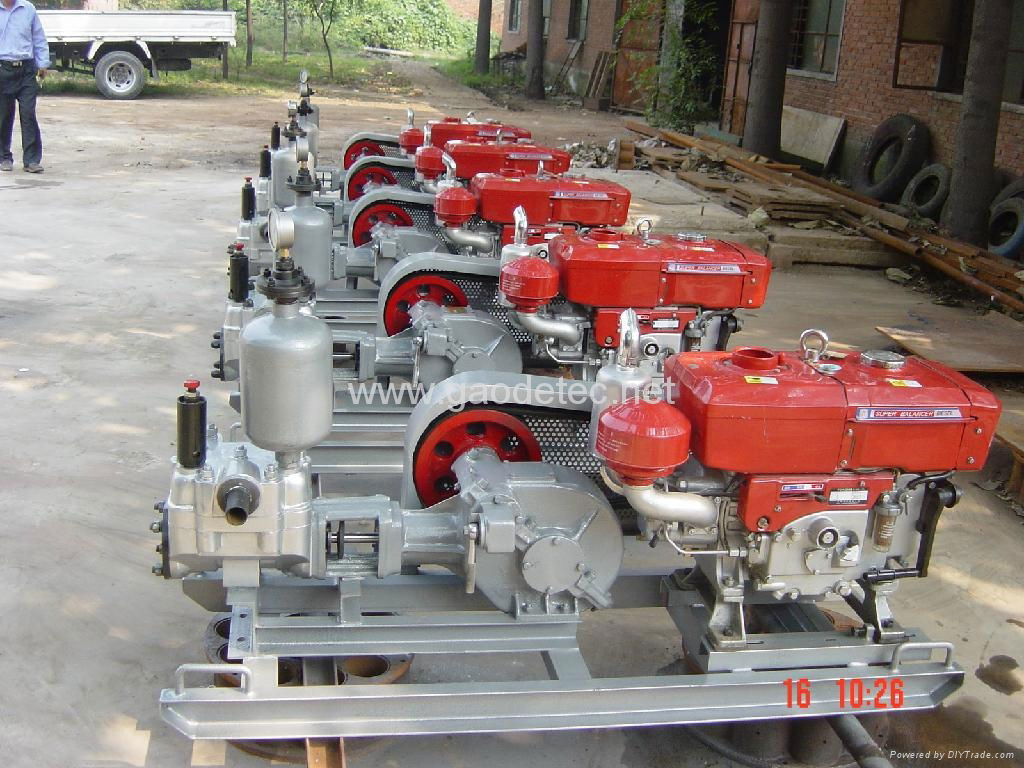

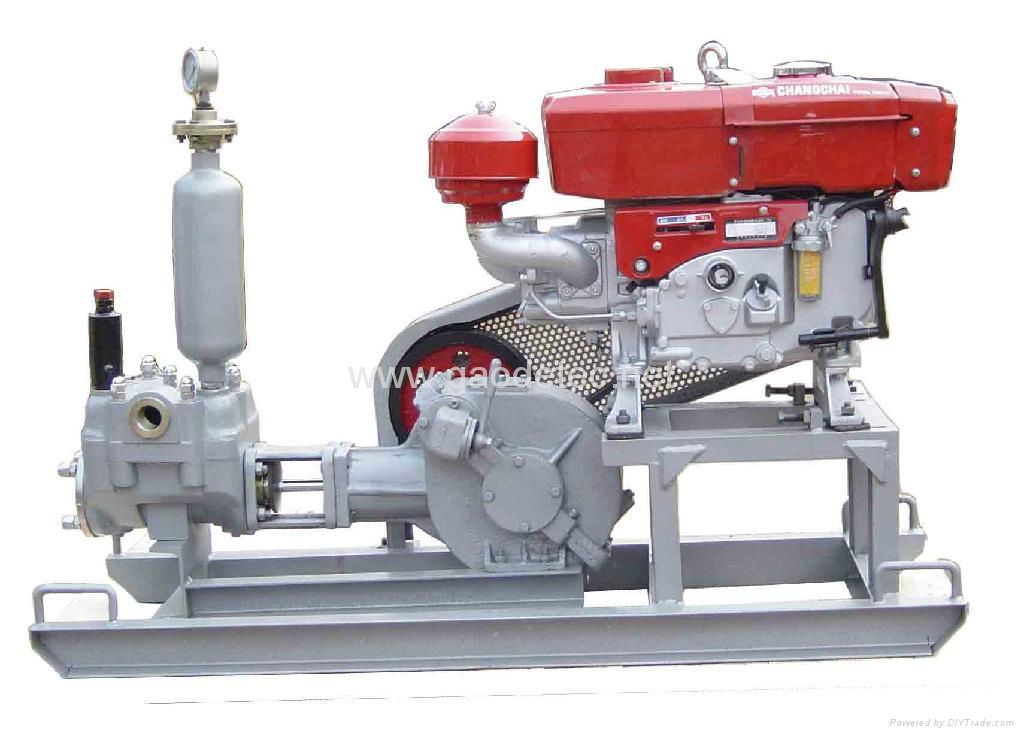

GDM130/20 Jet Grout Pump
|
Describe:
GDM130/20 Grouting Pump is a single piston double-acting grouting pump with gear reducer, which is a universal medium-pressure grouting pump. It is used for grouting in soil nails, earth anchors, cable and rock bolts, void fillings, dam foundations, foundation stabilization, tunnel lining, slope line grouting. The grouting pump is ideal for grouting-process in underground and civil applications.
Features:
1. Single piston double-acting
2. Gear&Vee belt transmission makes this pump high mechanical efficiency and working reliability
3. Integrated valve house and ball valve, together with compact structure
4. Body of pump is made of aluminum casting, low weight is an advantage for transport
Technical data:
| Rated Output |
130L/min |
| Rated Pressure |
2MPa(20bar/290psi) |
| Cylinder Dia. |
75mm |
| Piston Stroke |
85mm |
| Stroke/Minute |
180/min |
| Inlet diameter |
51mm |
| Outlet diameter |
38mm |
| Power unit |
5.5KW(Electric) 10hp(Diesel) |
| Transmission |
V-belt+gearbox |
| Chassis |
Skid |
| Weight |
260kg |
| Overall Dimensions |
1400x600x1000(mm) |
| A complete set of GDM130/20 |
|
No.
|
Description
|
Qty.
|
Unit
|
|
1
|
GDM130/20 grout pump
|
1
|
set
|
|
2
|
Rubber piston
|
2
|
piece
|
|
3
|
Sucking hose ID51mm/2inch, L=2m
|
1
|
pcs
|
|
4
|
ID38 conveying hose,Length 10m
|
1
|
pcs
|
|
5
|
Accessorial tools
|
1
|
set
|
|
6
|
Seal parts kit
|
1
|
set
|
|
| |
Contact Supplier：
Many thanks for visiting our web, we can supply grout pump for you. Before we send quotation, please let me know the following question:
1. What's pressure and flow of the pump you need ?
2. The water cement ratio, any sand in ?
3. About the power: electric (voltage and frequency) or diesel or air motor ?
We have many standard models for your option, and we also could customize as per your requirement. Please tell us your requirements and we will provide you with the corresponding product parameters and quotations. If you have any questions, please contact us.
