GHG‐10 Hand Grouting Pump

  • GHG‐10 Hand Grouting Pump
  • GHG‐10 Hand Grouting Pump
  • GHG‐10 Hand Grouting Pump
  • GHG‐10 Hand Grouting Pump
  • GHG‐10 Hand Grouting Pump
Model No.︰GHG-10
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 630 / pc
Minimum Order︰1 pc
Share on:

 Total 38 Related Items
Prev2728293031Next

Product Description

GHG-10 Hand Grouting Pumps



Output 0‐10 L/min
Rated working Pressure 10 bar
Cylinder Diameter 110mm
Piston Stroke 40mm
Inlet Dia. 25mm
Outlet Dia. 25mm
Dimension 980x290x590mm
Weight 40kgs
Chassis Skid
Remarks: with the rocker, the height is 1065mm



Payment Terms︰T/T L/C
Packing︰plastic wrap, plywood case, free-gumigation, standard export packing. as shown below. Or customized.
Lead Time︰in stock. common type 7 working days after confirm
Standards Certificate︰CE ISO

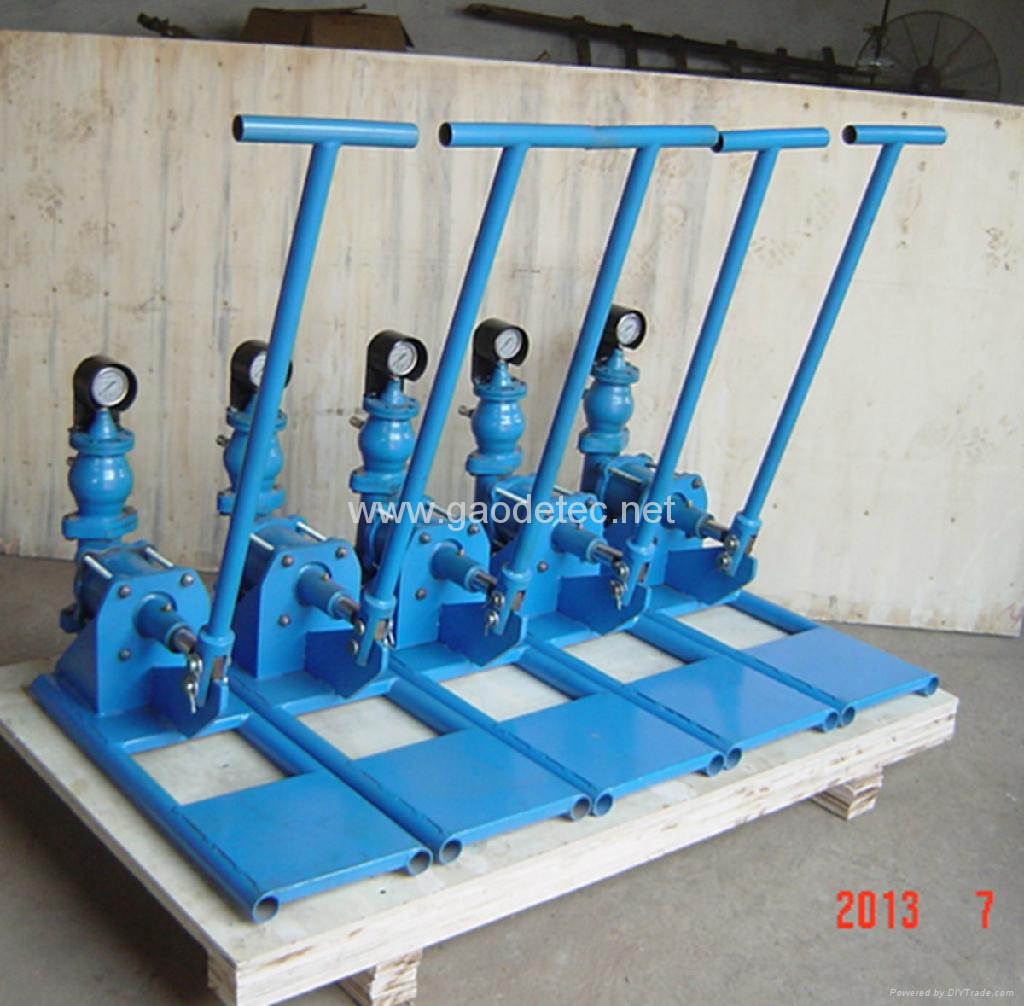

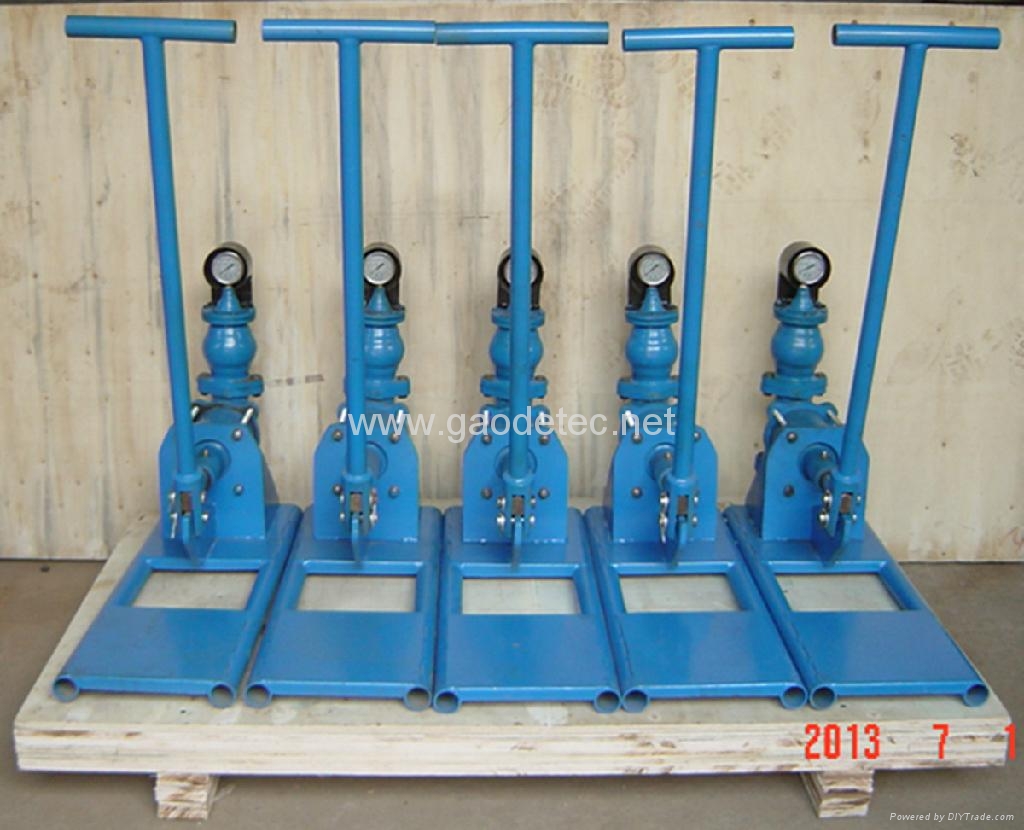

Product Image
