Product Description

Automatic CLC blocks production line

CLC is cellular light weight concrete, has been used in over 40 countries over the past year for build houses, apartments, schools, hospitals, industrial buildings etc.

New building material foam concrete block featurs:
*Low Cost                                *Light Weight
*Heat Preservation                   *Sound Insulation
*Fireproofing                            *Aseismatic
*High Construction Speed         *Environmental Protection

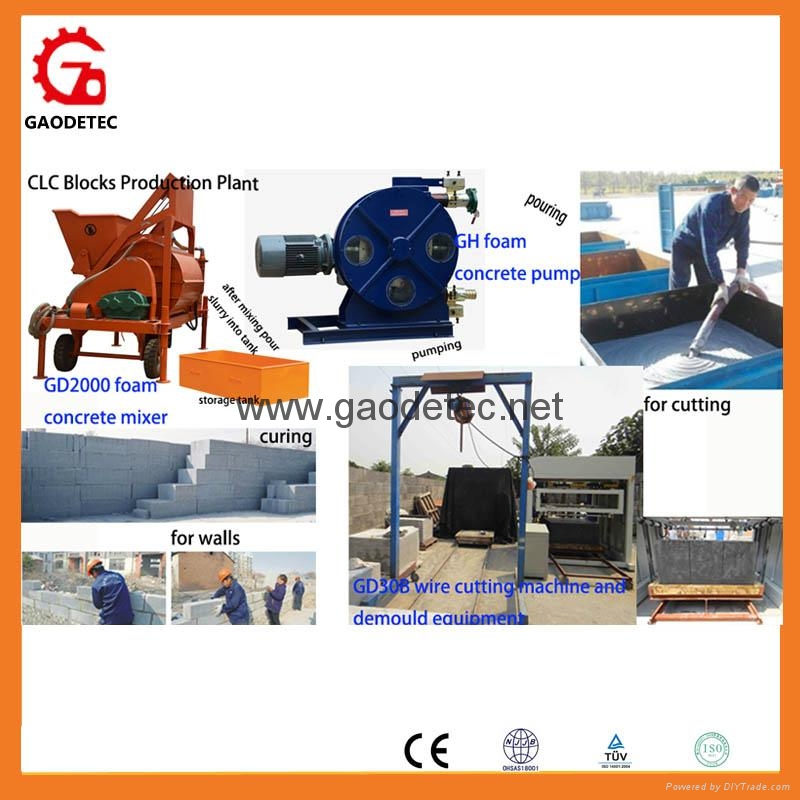

Main machines for making CLC blocks include: GM2000 foam concrete mixer, GH76/65/GH50 foam concrete pump, wire cutting machine.  In this configuration, could improve foam concrete bricks produce efficiency.

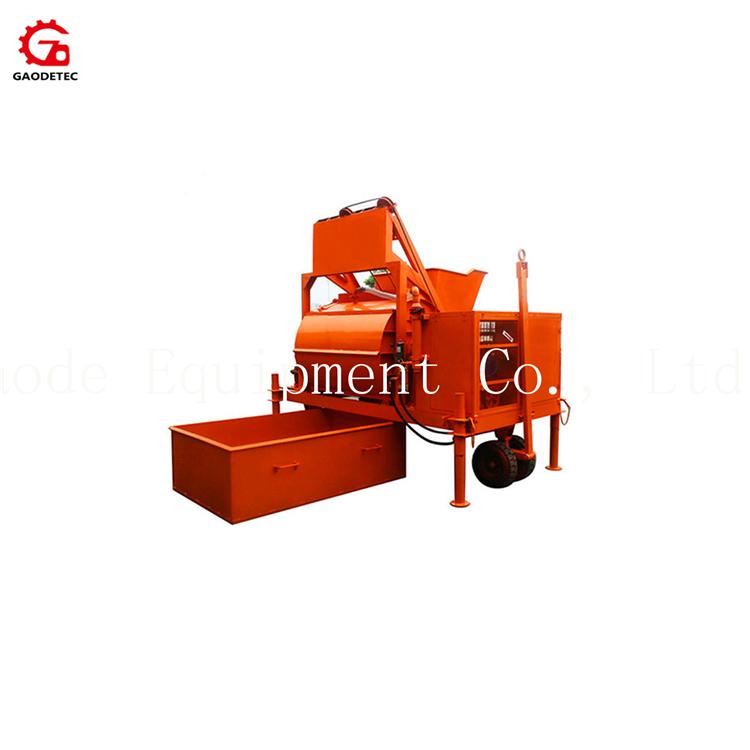

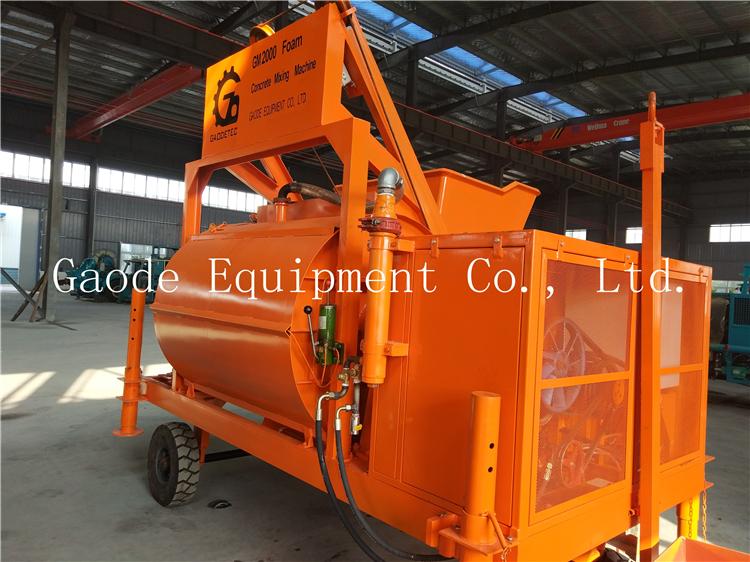

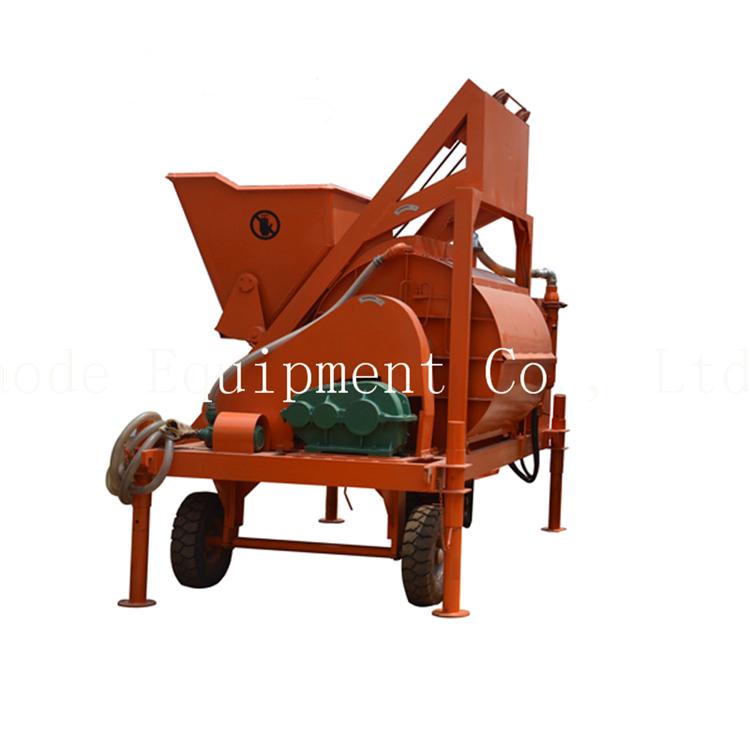

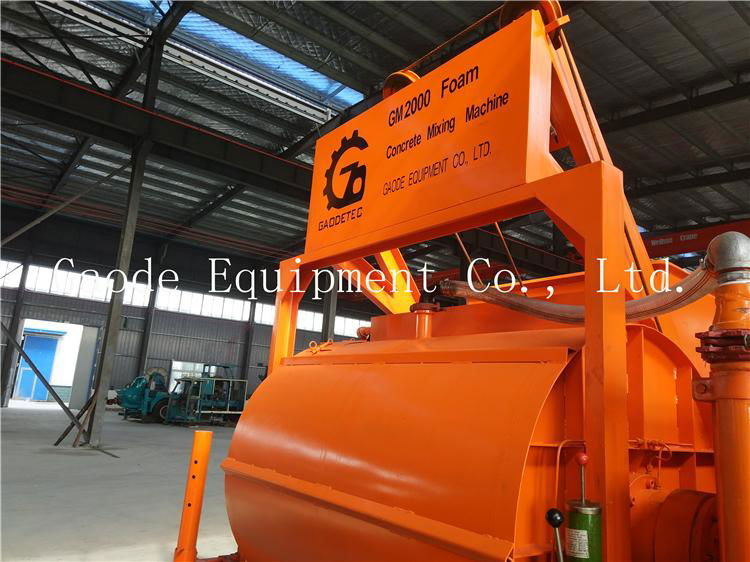

GM2000 foam concrete mixer

The foam concrete mixer mainly includes mixer, feeder hopper, foam generator, water pump, control panel, tank.

Features:

1. It could mixing variable materials, such as cement, fly ash, sand pulp, sand stone, perlite, and slag etc.

2. Specially mixing blades, mixing the material toughly, storage in its bottom is less than 10mm, no material left on the four walls internal the mixing drum.

3. Variable speed mixing and internal structure alteration make its installation easy and mixing frequency high, it saves energy.

Main technical data sheet:

Model GM2000
Production Capacity 15-20 m3/h
Output Volume 1500 L
Material Input Volume 2000 L
Main Shaft Revolution 32 r/min
Hopper Lifting speed 22 m/min
Mixing Motor 11 kW
Winding Motor 5.5 kW
Water Pump Motor 1.1 kW
Vibrating Motor 0.55 kW
Foaming System 5.5 kW
Max. Moving Speed 15 km/h
Total Weight 3200 kg
 Overall Dimension 2600x2250x3000 mm

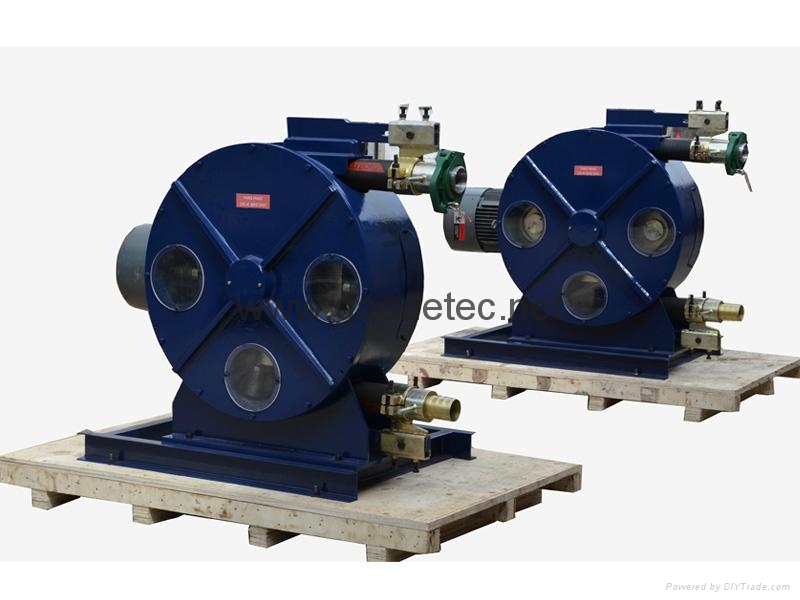

GH76/65/50 foam concrete pump for option


Features:

  1. No valves
  2. Self-priming
  3. Only tube to replace
  4. Spiral bevel gear SEW series
  5. Mainly consists pump house, rotor, idel rotor, squeeze tube, and driving unit
  6.  Easy maintance, low cost, short down time

Model

GH76

GH65

GH50

Output

20m3/h

10-15 m3/h

8-10 m3/h

Max. theoretical conveying pressure

1.5MPa

1.5Mpa

1.5Mpa

Hose ID(mm)

76

65

50

Rotation

42r/min

42r/min

35r/min

Max. aggregate Dia ( mm )

15mm

12

10

Max. Suct.Left ( m )

5

5

5

Motor Power (kw)

18.5kw

11

7.5

Wire cutting machine:

Name GW 30B Wire Cutting Machine
Electric Motor Kw

2.2 kw*1 set, 0-56r/min

adjusted

750w*2 set, 0-560r/min

adjusted

Effective hoisting height 700mm

Cutting

plantform size ( L*W*H)

1240*1240*225mm
Net cutting size (L*W*H) 1200*1200*600mm
Cutting cycle 60-180seconds
Overall dimension (L*W*H) 2160*2060*2280mm
Total weight 1100kg

It is specially used to cut various foam concrete blocks. Easy operation, high efficiency. The block size between 100-200-300-400-500-600-700-800-900-1000-1100-1200mm could be adjusted willfully.

Production capacity

0.8643M3 600*200*75mm 96 pcs/mould
0.8643M3 600*200*100mm 72 pcs/mould
0.8643M3 600*200*150mm 48 pcs/mould
0.8643M3 600*200*200mm 36 pcs/mould
0.8643M3 600*200*300mm 24 pcs/mould

1.    Could cut a block in two directions simultaneously at one time (cutting machine made by blade can cut only one direction and buyer must use two machines to cut one block in two times)

2.    Cutting one block need 3-4 minutes, so max cutting capacity could up to 17 m3/hour

mould size and bricks size also could be customized according to your demands

Payment Terms︰T/T/LC/DP/DA/IN CASH
Packing︰contained in a 40 feet container
Lead Time︰Within 7 days after received the prepayment
Standards Certificate︰ISO9001 CE
