Factory GF40 clc foam concrete machines output 40m3/h for sale

CLC foam machine
  • CLC foam machine
  • foaming concrete
  •  concrete foam pump
  •  concrete foam machine
  •  concrete foam machine
  • CLC foam machine
  • foaming concrete
  •  concrete foam pump
  •  concrete foam machine
  •  concrete foam machine
  • CLC foam machine
  • foaming concrete
Model No.︰GF40
Brand Name︰Gaode
Country of Origin︰China
Unit Price︰-
Minimum Order︰1 pc
Share on:

 Total 40 Related Items
Prev56789Next

Product Description

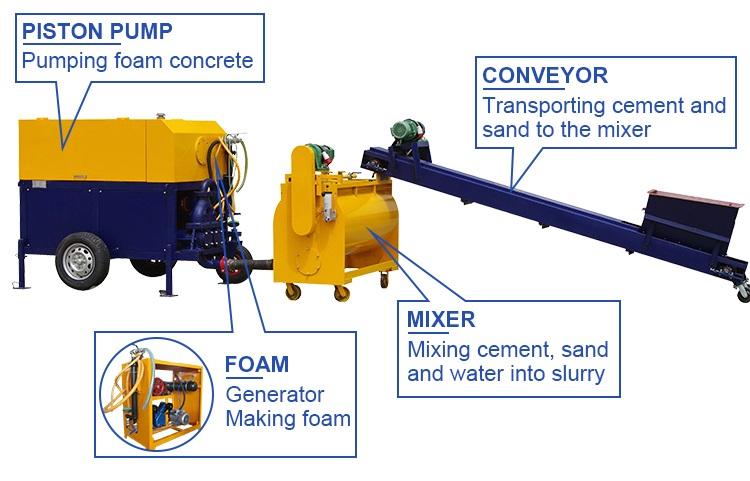

GF40 foam concrete machine is a middle-sized patent product based on many years experience, with completely independent intellectual property rights. It includes a screw conveyor, a mixer, a foam generator and a foam concrete pump, adopts advanced control technology, can exactly adjust foam cement density. It also meets different densities of foam concrete products manufacturing, capacity is 20m3/h.

Features:

1. GF40 foam concrete machine is a middle-sized one, designed for bricks production, which is easy to operate and mobile.

2. Pumping, foaming and mixing system assembles as a whole, convenient to use;

3. It has the continuous feeding system and water supply system, with high pumping height and low power requirement.

4. It adopts hydraulic system to pump foam concrete, more powerful, can up to 80m vertical pumping distance.



Advantages:

Frequency converter:adopts digital control technology, can exactly adjust foam cement density.

Static mixer: reduce the ratio of foam loss and guarantee the quality of the foam concrete.

Hydraulic piston system: stable flow, small fluctuation, and low foam loss ratio.

Screw conveyor: automatic delivery, time-saving and labour-saving.

Technical parameters:

Model No./Cement foam machine

GF40

Max. theoretical concrete put(m³/h)

20

Motor power(kw)

21

Theoretical vertical conveying height(m)

80

Theoretical level transmission distance(m)

500

Mixer tank capacity(L)

580

Filling height(mm)

1100

Mixer size(mm)

1940*780*1470

Feeder size(mm)

3990*760*830

Main part overall dimension(mm)

3000*1420*830

Weight of main part(kg)

1400



Contact Supplier:

Many thanks for visiting our web, we can supply foam concrete machine for you. Before we send quotation, please let me know the following question:

1. What project you will do? CLC , walls, floor, roof, or other?
2. How much capacity do you need?  We have 5m3/h, 10m3/h, 20m3/h, 30m3/h, 40m3/h for your choice.
3 .What materials you use to make foam concrete? Cement, sand, foam agent, water?
4. How much density of the foam concrete you want to make? We always make 400-1600kg/m3.


We have now developed full series of products with different of models. Max. output from 5-40m3 /h. Power , output, pressure and voltage are available options for customization. Of course, we also provide foam agent and foam concrete pump. I sincerely want to do business with you. If you have any questions, please contact us.

Payment Terms︰TT / LC / DP / DA
Packing︰Wooden packing
Lead Time︰15
Standards Certificate︰ISO CE
