full-automatic continuously foam concrete and CLC making machinery

foam concrete machine
  • foam concrete machine
  • clc foam machine
  • cement foam machine
  • cement foam machine
  • cement foam machine
  • foam concrete machine
  • clc foam machine
  • cement foam machine
  • cement foam machine
Model No.︰GF5H
Brand Name︰Gaodetec
Country of Origin︰China
Unit Price︰US $ 6500 / pc
Minimum Order︰1 pc
Share on:

 Total 40 Related Items
Prev678910Next

Product Description

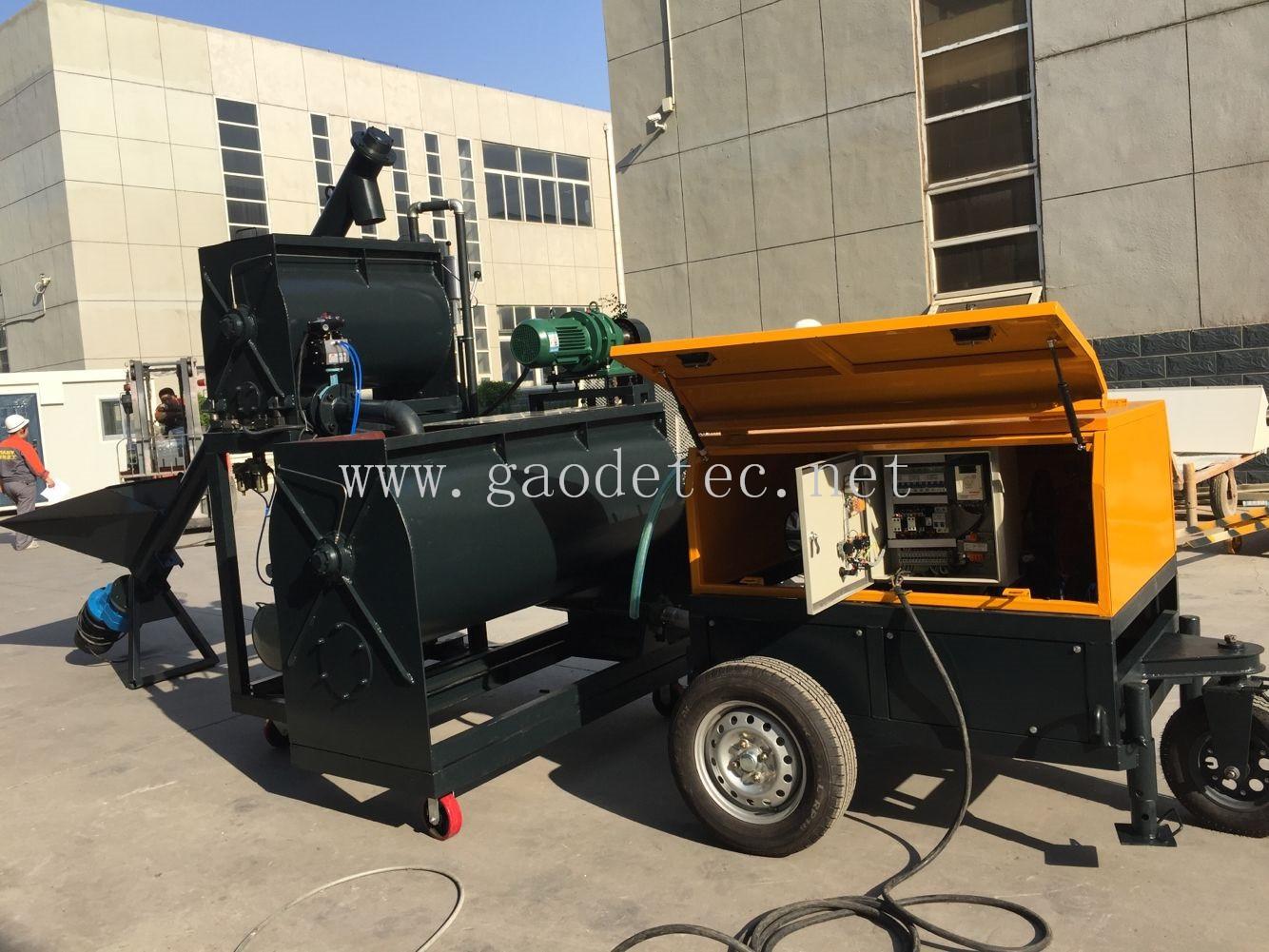

GF5H clc foam concrete machine includes 2 Concrete Mixer, A Screw Conveyor, A  Foam Generator and A Hose Pump, adopts advanced centralized control technology, can exactly adjust the density of foam cement. The capacity is 5m3/h, this foam concrete machine can dilute foam agent automatically based on designed ratio, very easy to operate and use.

Model

GF5H

Max.output

5m3/h

Motor power

7.7kw

Filling height

880mm

Max.Horizontal pumping distance

300m

Max.Vertical pumping distance

40m

Mixing tank capacity

200L

Overall dimension

2.1*1.3*1.4m

Weight

910kg

Power can support customization



Contact Supplier:

Many thanks for visiting our web, we can supply foam concrete machine for you. Before we send quotation, please let me know the following question:

1. What project you will do? CLC , walls, floor, roof, or other?
2. How much capacity do you need?  We have 5m3/h, 10m3/h, 20m3/h, 30m3/h, 40m3/h for your choice.
3 .What materials you use to make foam concrete? Cement, sand, foam agent, water?
4. How much density of the foam concrete you want to make? We always make 400-1600kg/m3.


We have now developed full series of products with different of models. Max. output from 5-40m3 /h. Power , output, pressure and voltage are available options for customization. Of course, we also provide foam agent and foam concrete pump. I sincerely want to do business with you. If you have any questions, please contact us.

Payment Terms︰TT / LC / DP / DA
Packing︰Wooden packing
Lead Time︰15
Standards Certificate︰ISO CE
Product Image

foam concrete machine
foam concrete machine

clc foam machine
clc foam machine

cement foam machine
cement foam machine

cement foam machine
cement foam machine

cement foam machine
cement foam machine

foam concrete machine
foam concrete machine

clc foam machine
clc foam machine

cement foam machine
cement foam machine

cement foam machine
cement foam machine
