How to Build Foam Concrete Wall for House

Brief instruction:

Foamed concrete is a lightweight concrete derived from portland cement and common portland cement as inorganic cementing material, coal ash as admixture, sand as aggregate, mixed with organic foaming agent. Non-load-bearing walls constructed by cast-in-situ.

Main machines for cast-in-place foam concrete wall includes: GM2000 foam concrete mixer, GP30 foam concrete pump, stencil or formwork foaming agent etc.

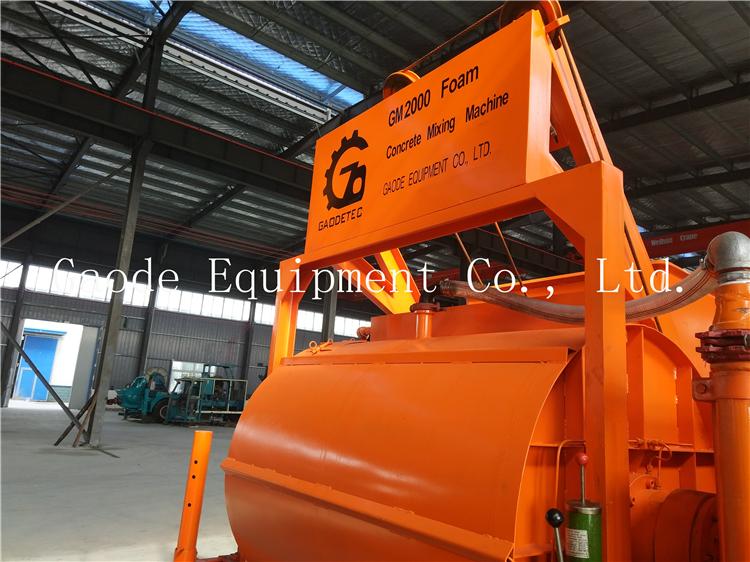

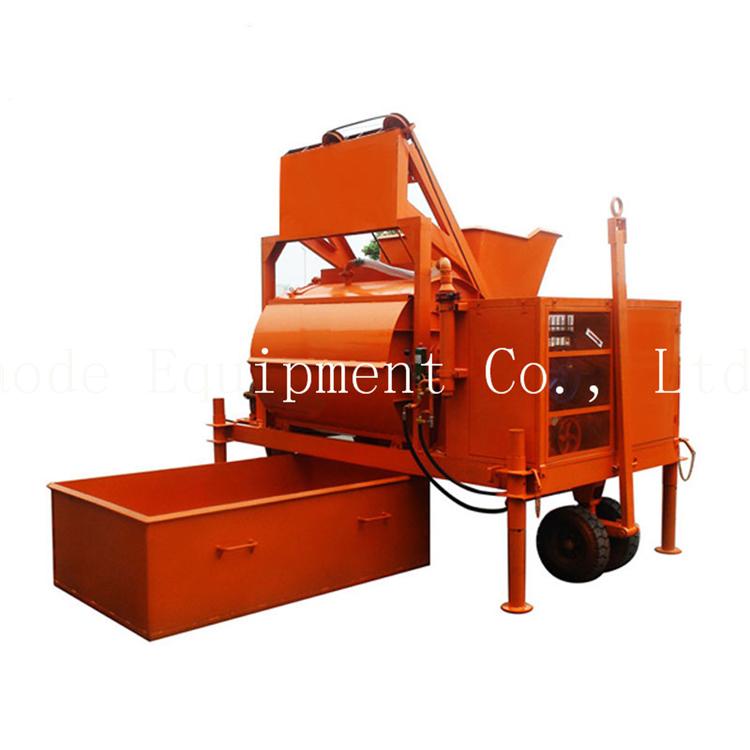

GM2000 foam concrete mixer:

The foam concrete mixer mainly includes mixer, feeder hopper, foam generator, water pump, control panel, tank.

Features:

1. It could mixing variable materials, such as cement, fly ash, sand pulp, sand stone, perlite, and slag etc.

2. Specially mixing blades, mixing the material toughly, storage in its bottom is less than 10mm, no material left on the four walls internal the mixing drum.

3. Variable speed mixing and internal structure alteration make its installation easy and mixing frequency high, it saves energy.

Technical data sheet:

Model

GM2000

Production Capacity

15-20 m3/h

Output Volume

1500 L

Material Input Volume

2000 L

Main Shaft Revolution

32 r/min

Hopper Lifting speed

22 m/min

Mixing Motor

11 kW

Winding Motor

5.5 kW

Water Pump Motor

1.1 kW

Vibrating Motor

0.55 kW

Foaming System

5.5 kW

Max. Moving Speed

15 km/h

Total Weight

3200 kg

Overall Dimension

2600x2250x3000 mm

GP30 foam concrete pump:

Model

GP30

Max. Output

30 m3/h

Max. Conveying Pressure

8 MPa

Max. Horizontal Transporting Range

600 m

Max. Vertical Transporting Height

200 m

Max. Particle Size of Aggregates

8 mm

Cylinder Bore

80 mm

Delivery Cylinder Bore

140 mm

Max. Pressure of Hydraulic System

24 MPa

Oil Pressure Box Volume

200 L

Motor Power

30 kW

Total Weight

2200 kg

Overall Dimension

3100x920 x1300mm

Stencil or formwork:

Main standard:

1). 450*900mm         2). 150*900mm           3). 100*900mm

Also could according to your demands to customize.

Foaming agent:

The foaming agent is a high-tech product, it has the characteristics as high expansion ratio, balanced density, foaming stability, and a long continuance, etc. Thus it is an environmental protective mighty foaming agent, which is nuisance-free and pollution-free.

Payment Terms︰TT/DP/DA/LC
Packing︰Contained in a 40 feet container
Lead Time︰within 7 days after received the first payment
Standards Certificate︰ISO9001/CE
